Trolleybus
Cross-spans
Products
Cable support network
Trapeze

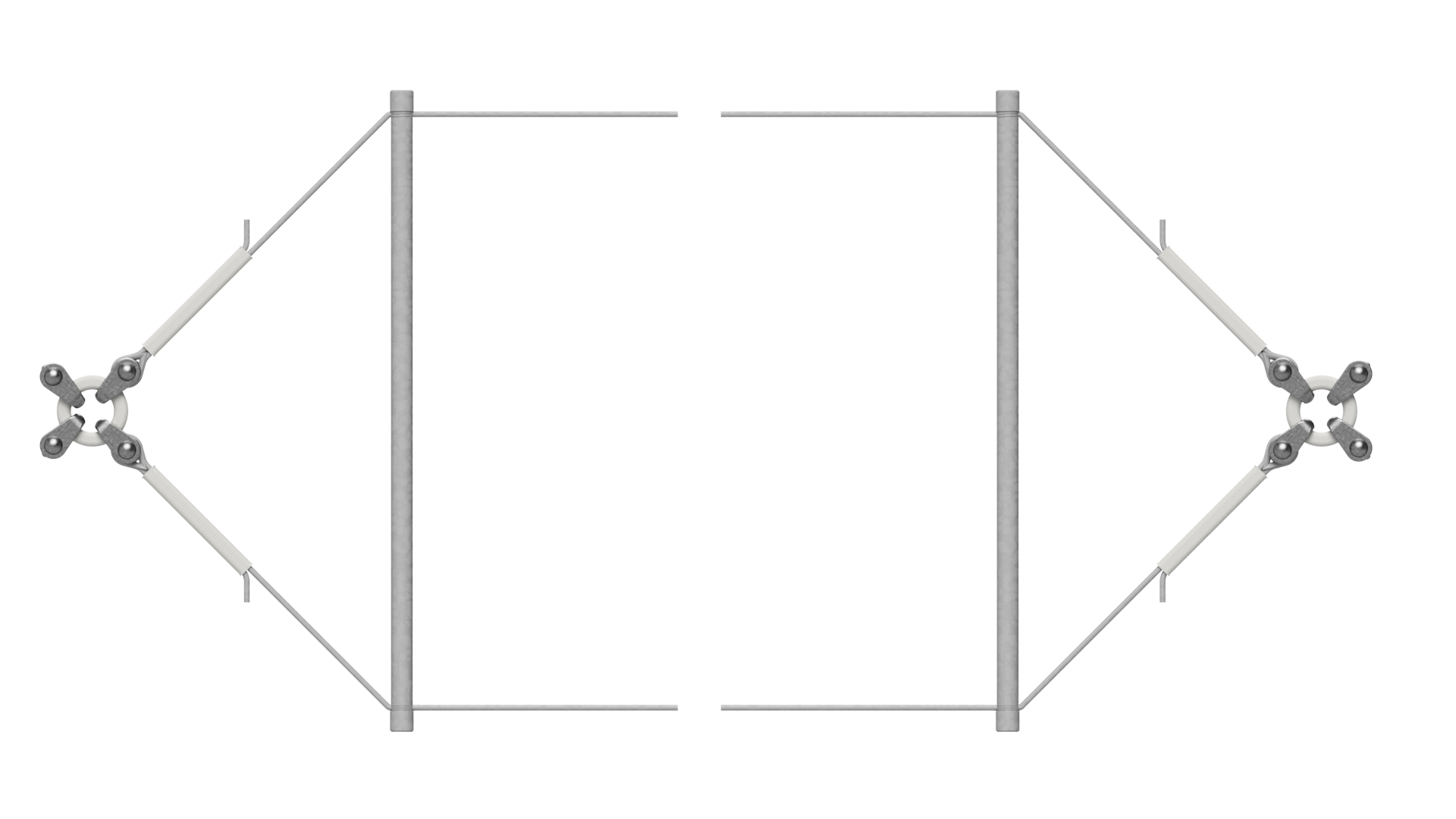

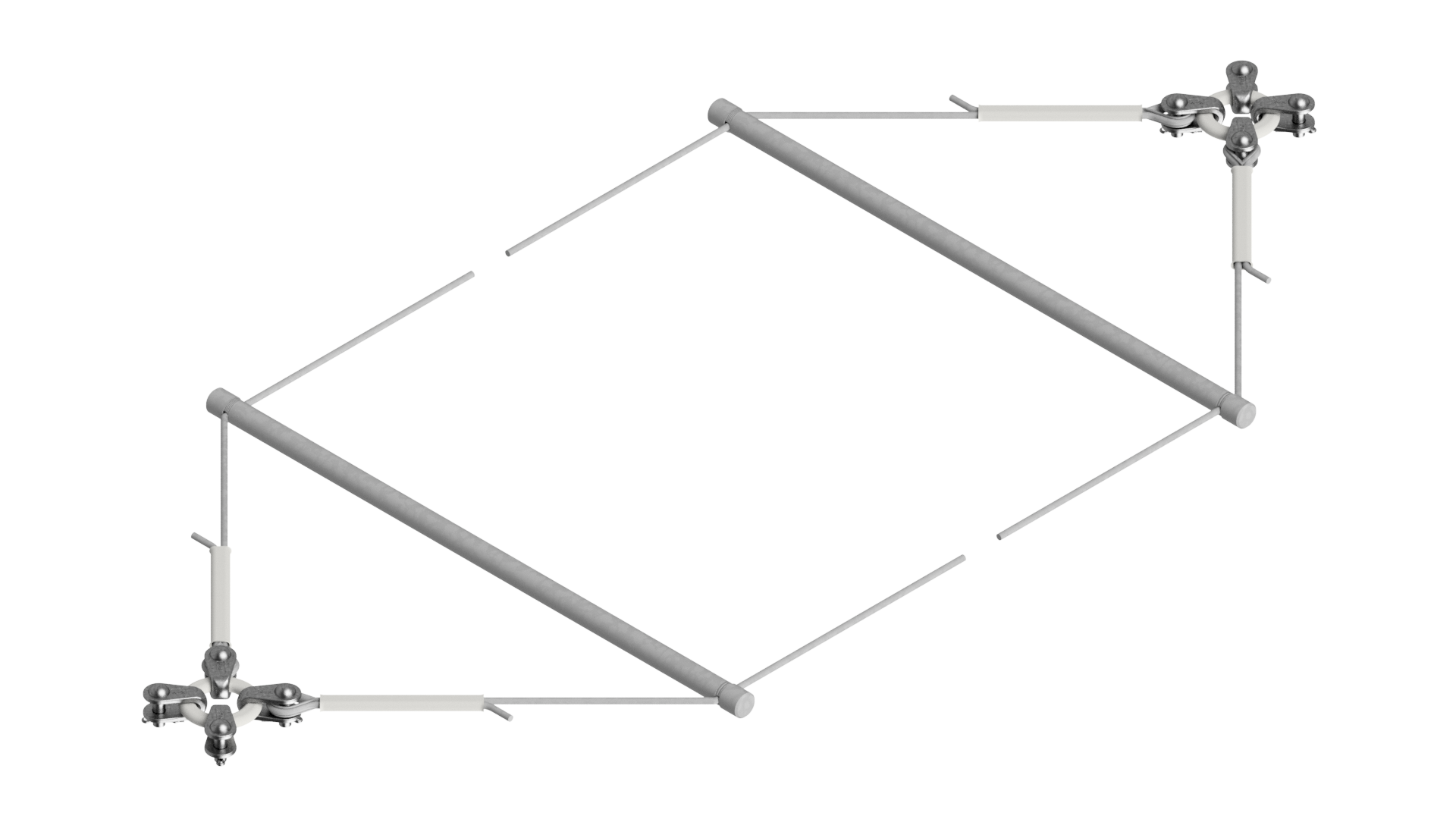

Trapeze for guying of switches and crossings steel cable 35 mm² HDG, with bull ring, without insulation
Request for quotation (
0
)
added to cart
Display basket
100237
Loads
Breaking load: 43.80 kN
Comments
- Attachment in the support network
In the basket
Parts list
1
Thimble, 35 mm², STL HDG
E0492-01
Quantity: 4
Unit: pcs
In the basket
2
Sleeves, 35 mm², STL HDG
E0493-01
Quantity: 4
Unit: pcs
In the basket
3
Shackle type 1with pin
D0231-01
Quantity: 4
Unit: pcs
In the basket
3
Shackle for KULOOP, with pin, STL HDG
E0928-01
Quantity: 4
Unit: pcs
In the basket
4
Spreading pipe, type 700
E0114-03
Quantity: 2
Unit: pcs
In the basket
5
Bull ring small, Ø inside = 50 mm
E1427-01
Quantity: 2
Unit: pcs
In the basket
6
Steel cable 35 mm²
300079
Quantity: 6
Unit: kg
In the basket
