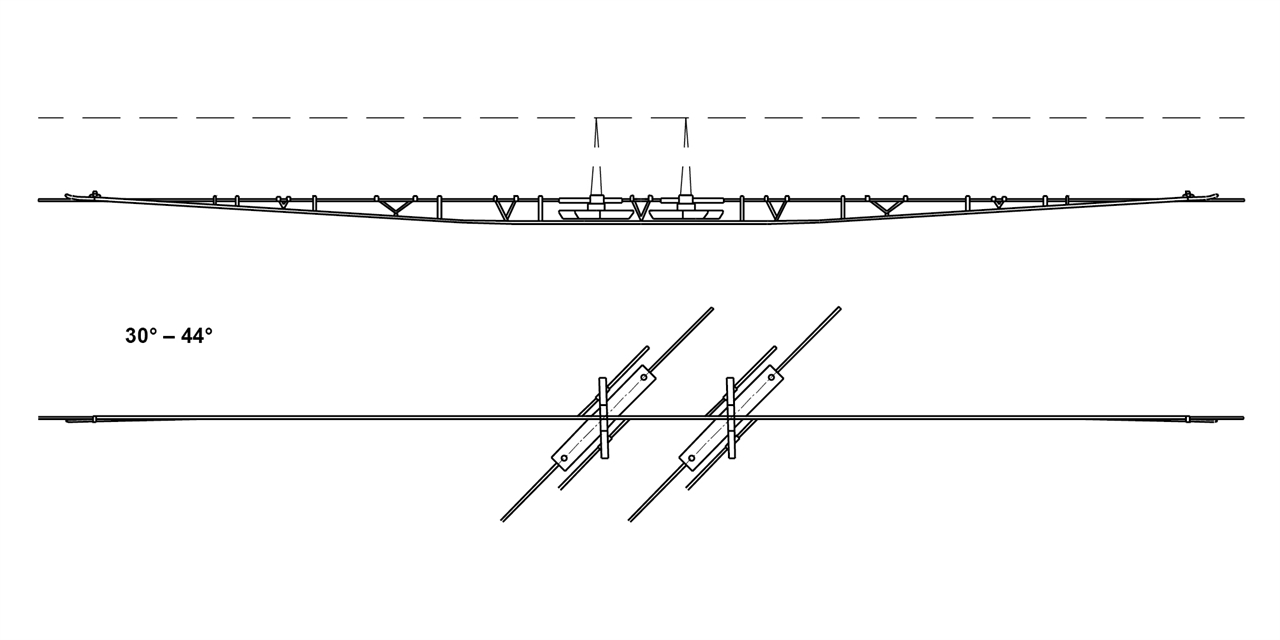

Crossing ETB-TW, bridging, 30°-44°, with jumper, flat profile/tube, TW contact line not auto-tensioned

100788

Specification

Voltage: max. 1000 V DC

Comments

- For grooved contact wire 80-120 mm²
- Without supporting network and suspension
- Execution for 2 TW grooved contact wires on request
- Detailed installation plans can be requested for each delivery of this assembly

Parts list
Replacement parts

0

Insulation tube slited

300020

Quantity: 3

0

Clamping connector for oval copper tube

E1944-01

Quantity: 6

0

Copper tube oval

E0143-01

Quantity: 14

0

Kupferprofil L=2000 Kreuzung Tb/Stb

D1741-03

Quantity: 1

0

Kupferprofil L=1100 Kreuzung Tb/Stb

D1741-01

Quantity: 2

0

Transition piece flat profile/tube

D0806-01

Quantity: 2

0

Suspension flat profile, with 4 screws, L = 200 mm

D0798-05

Quantity: 2

0

Suspension flat profile, with 1 screw, L = 200 mm

D0798-02

Quantity: 1

0

Supporting clamp for switches and crossings, 1/2", threaded length L = 20 mm

D0528-02

Quantity: 2

0

Suspension oval copper tube, without tube connection piece, L = 200 mm

D0449-02

Quantity: 2

0

Suspension oval copper tube, without tube connection piece, L = 80 mm

D0449-01

Quantity: 2

0

Glider for 1 wire screwed, for crossing ETB–TW

C0288-03

Quantity: 2

0

Support yoke for crossing ETB-TW, non-bridging, connection to flat profile

B1083-01

Quantity: 2

0

Seal cord SCAPA Ø = 3 mm

352672

Quantity: 4

0

Insulating tape self-sealing B = 100 x 3000 Armorcast

300940

Quantity: 2

0

Insulating tape Scotch B = 25 mm

300908

Quantity: 1

0

Stripcalk set (packed in small plastic bags)

E2972-01

Quantity: 4

Clamping connector for oval copper tube

E1944-01

Insulation tube slited

300020

Glider for 1 wire screwed, for crossing ETB–TW

C0288-03

Suspension flat profile, with 4 screws, L = 200 mm

D0798-05

Support yoke for crossing ETB-TW, non-bridging, connection to flat profile

B1083-01

Suspension flat profile, with 1 screw, L = 200 mm

D0798-02

Stripcalk set (packed in small plastic bags)

E2972-01

Seal cord SCAPA Ø = 3 mm

352672

Supporting clamp for switches and crossings, 1/2", threaded length L = 20 mm

D0528-02

Insulating tape self-sealing B = 100 x 3000 Armorcast

300940

Suspension oval copper tube, without tube connection piece, L = 200 mm

D0449-02

Copper tube oval

E0143-01

Insulating tape Scotch B = 25 mm

300908

Suspension oval copper tube, without tube connection piece, L = 80 mm

D0449-01

Transition piece flat profile/tube

D0806-01
