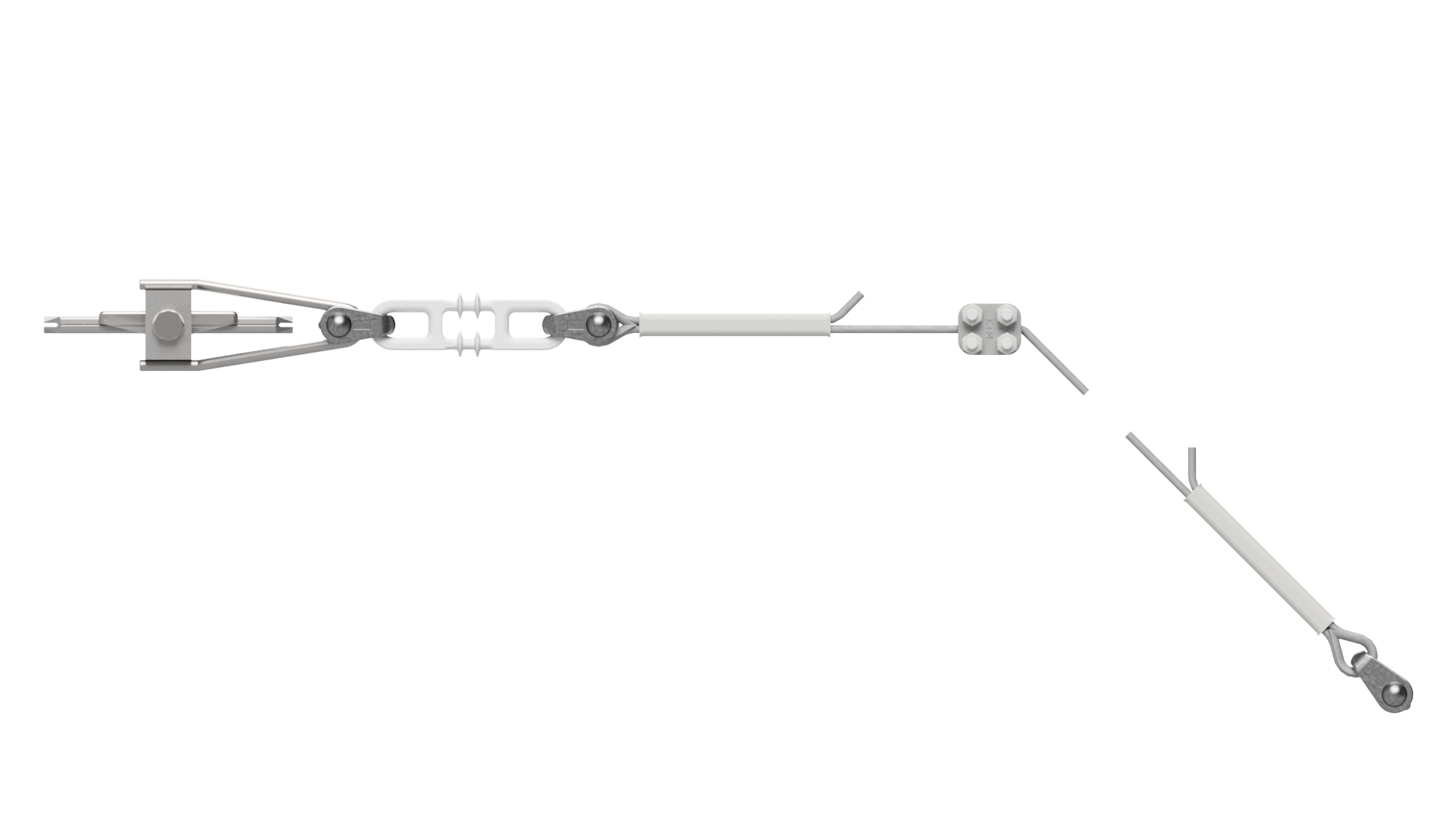

Tension reducer for 1 grooved contact wire, with steel cable, 35 mm² HDG, without insulation

Request for quotation (0)

added to cart Display basket

120847

Tension reducer for 1 grooved contact wire, with steel cable, 35 mm² HDG, without insulation

Tension reducer for 1 grooved contact wire, with steel cable, 35 mm² HDG, without insulation

Tension reducer for 1 grooved contact wire, with steel cable, 35 mm² HDG, without insulation

Loads

Breaking load: 43.8 kN

Parts list

1

KULOOP Loop insulator short 1,5 kV

D4069-01

Quantity: 1

Unit: pcs

2

Steel cable 35 mm²

300079

Quantity: 4.2

Unit: kg

3

Tension compensation clamp long, with thread 5/8", for 1 grooved contact wire 100–120 mm²

D1132-02

Quantity: 1

Unit: pcs

4

Crossing clamp for steel cable crossing clamp for steel cable 25-50 mm²

E0266-01

Quantity: 1

Unit: pcs

5

Shackle for KULOOP, with pin, STL HDG

E0928-01

Quantity: 3

Unit: pcs

6

Sleeves, 35 mm², STL HDG

E0493-01

Quantity: 2

Unit: pcs

7

Thimble, 35 mm², STL HDG

E0492-01

Quantity: 2

Unit: pcs
