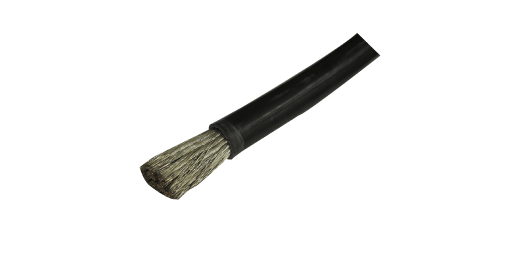

Feeder cable 120 mm²

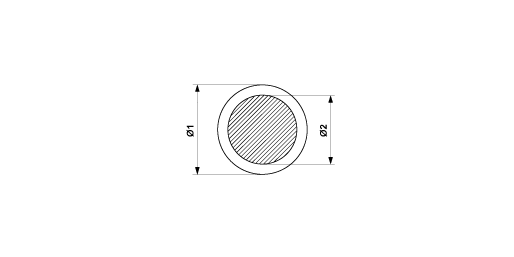

Dimensions

Ø2: 16.5 mm
Ø1: 20.15 mm

Material and weight

Weight: 1.260 kg/m

Function

Fixed installation outdoors

Specifications

Cable: flexible, isolated, flame retardant
Ambient temperature: -40° C up to +110° C
Cond x-sect: 120 mm²
Nominal voltage: 600/1000 V
Alternating voltage test: 3500 V

Comments

- Additional mechanical and electrical data and other cable types on request
