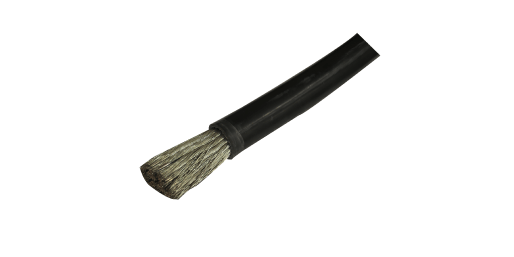

Feeder cable 95 mm²
added to cart
Display basket
300076

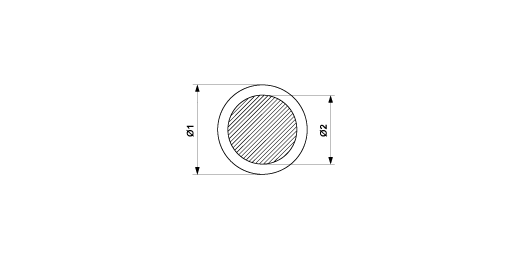

Dimensions
Ø1: 17.95 mmØ2: 14.5 mm
Material and weight
Weight: 0.980 kg/mFunction
Fixed installation outdoorsSpecifications
Cable: flexible, isolated, flame retardantAmbient temperature: -40° C up to +110° C
Nominal voltage: 600/1000 V
Alternating voltage test: 3500 V
Cond x-sect: 95 mm²
