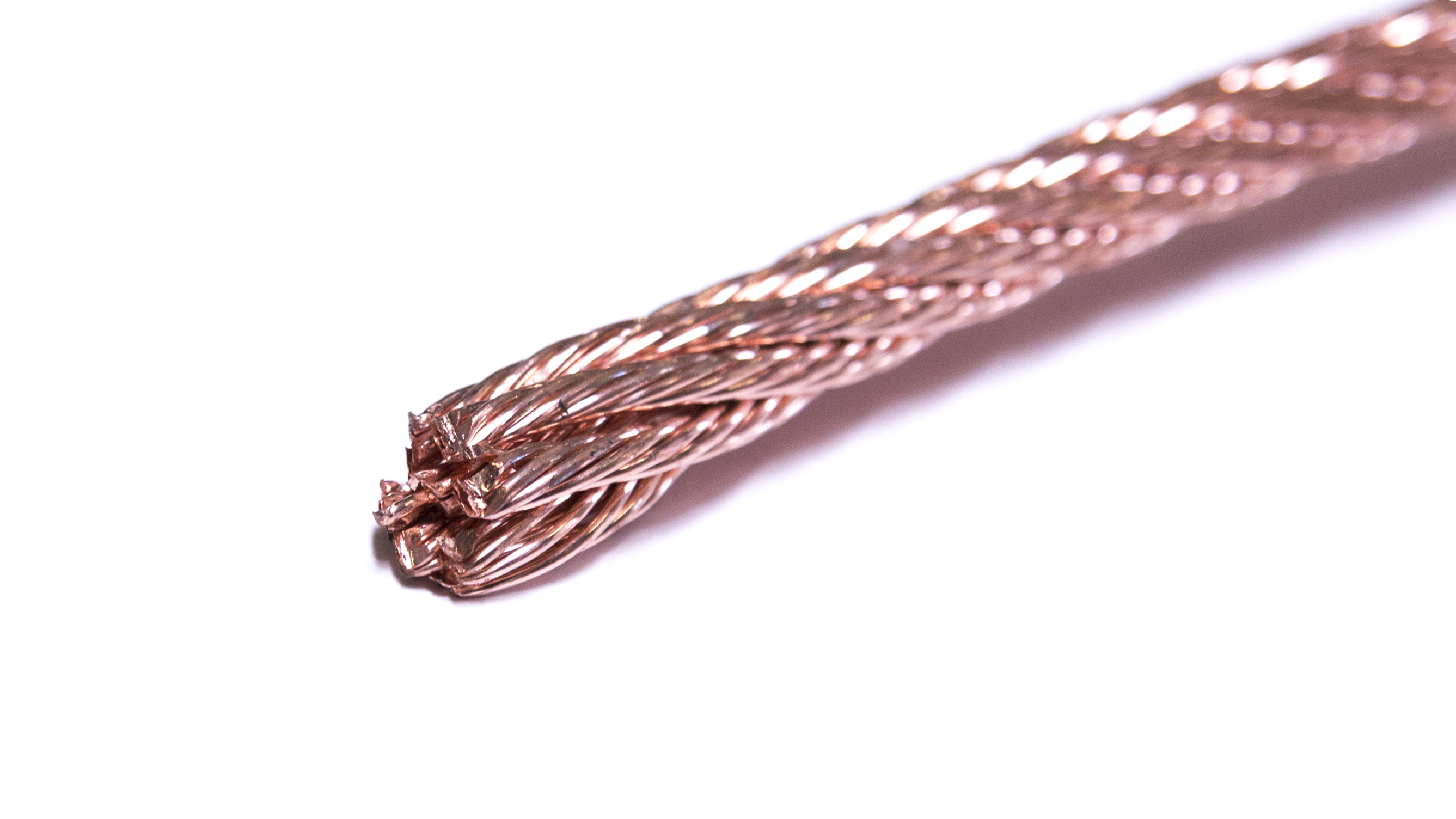

Copper cable, 120 mm² rigid, bare

300510

Copper cable, 120 mm² rigid, bare
Copper cable, 120 mm² rigid, bare

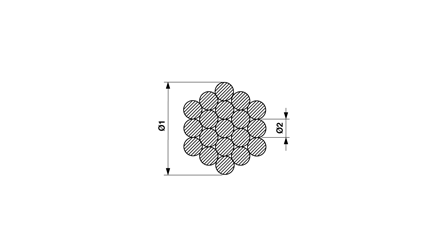

Dimensions

Ø1: 14.2 mm
Ø2: 2.84 mm

Material and weight

Weight: 1.100 kg/m
Material: E-Cu

Loads

Breaking load: 46.9 kN

Specification

Single wires: 19

Comments

- Copper cable is delivered in reels
- Additional copper cables and technical indications on request
