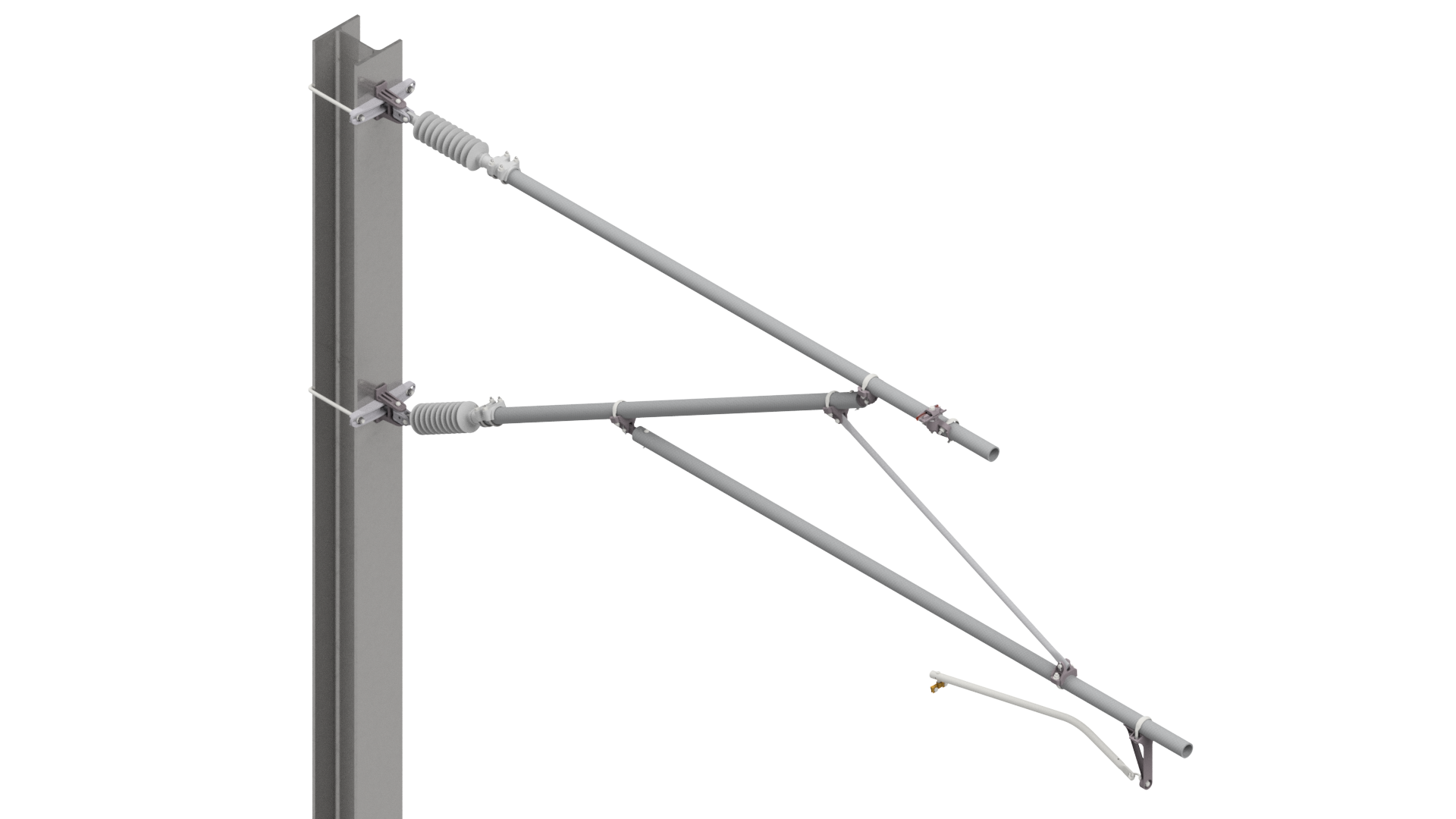

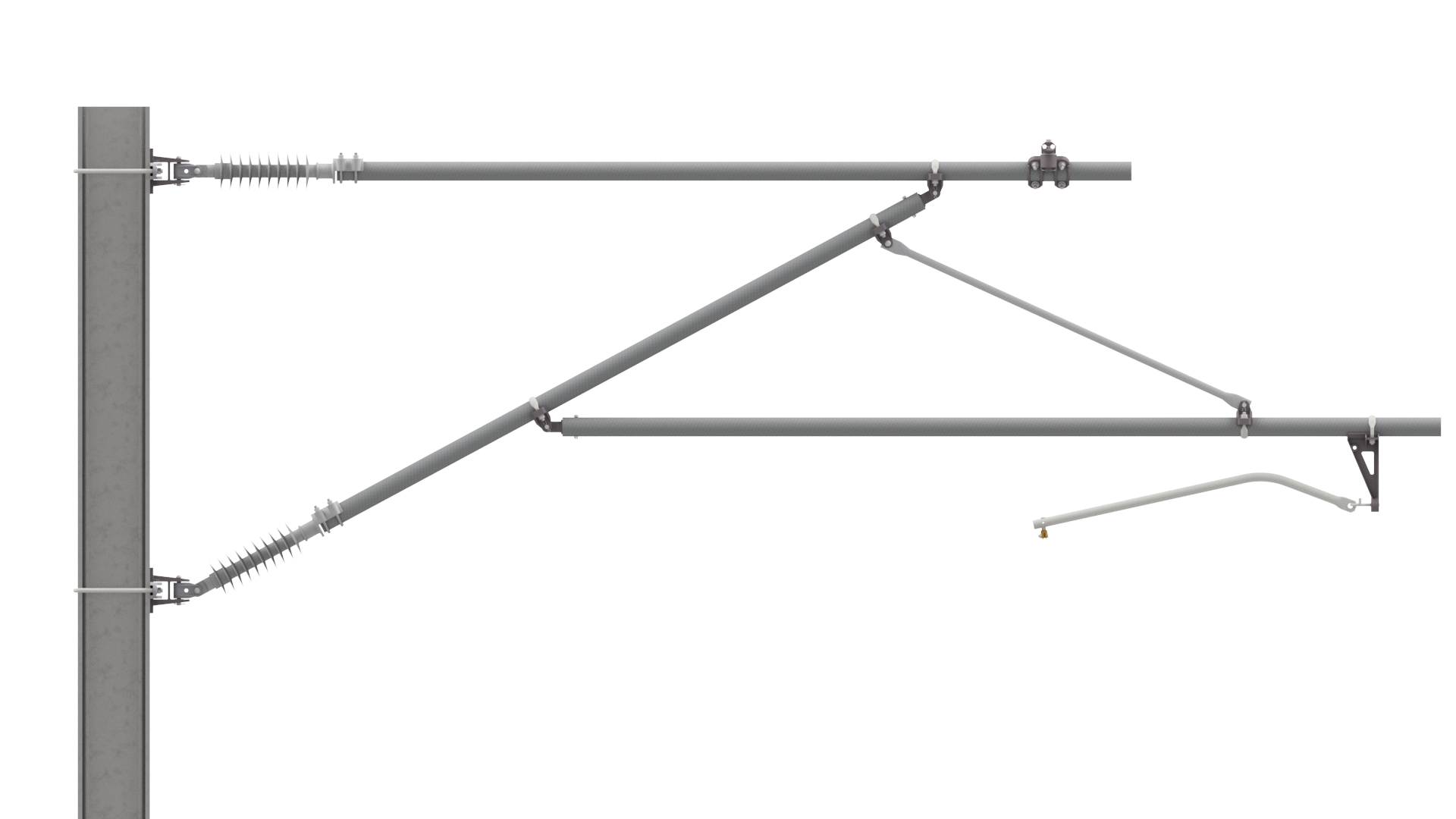

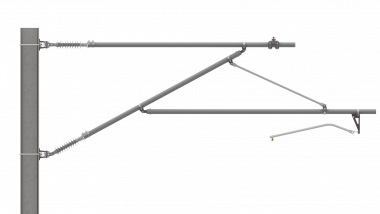

Cantilever, SH=1400, push
Request for quotation (820001

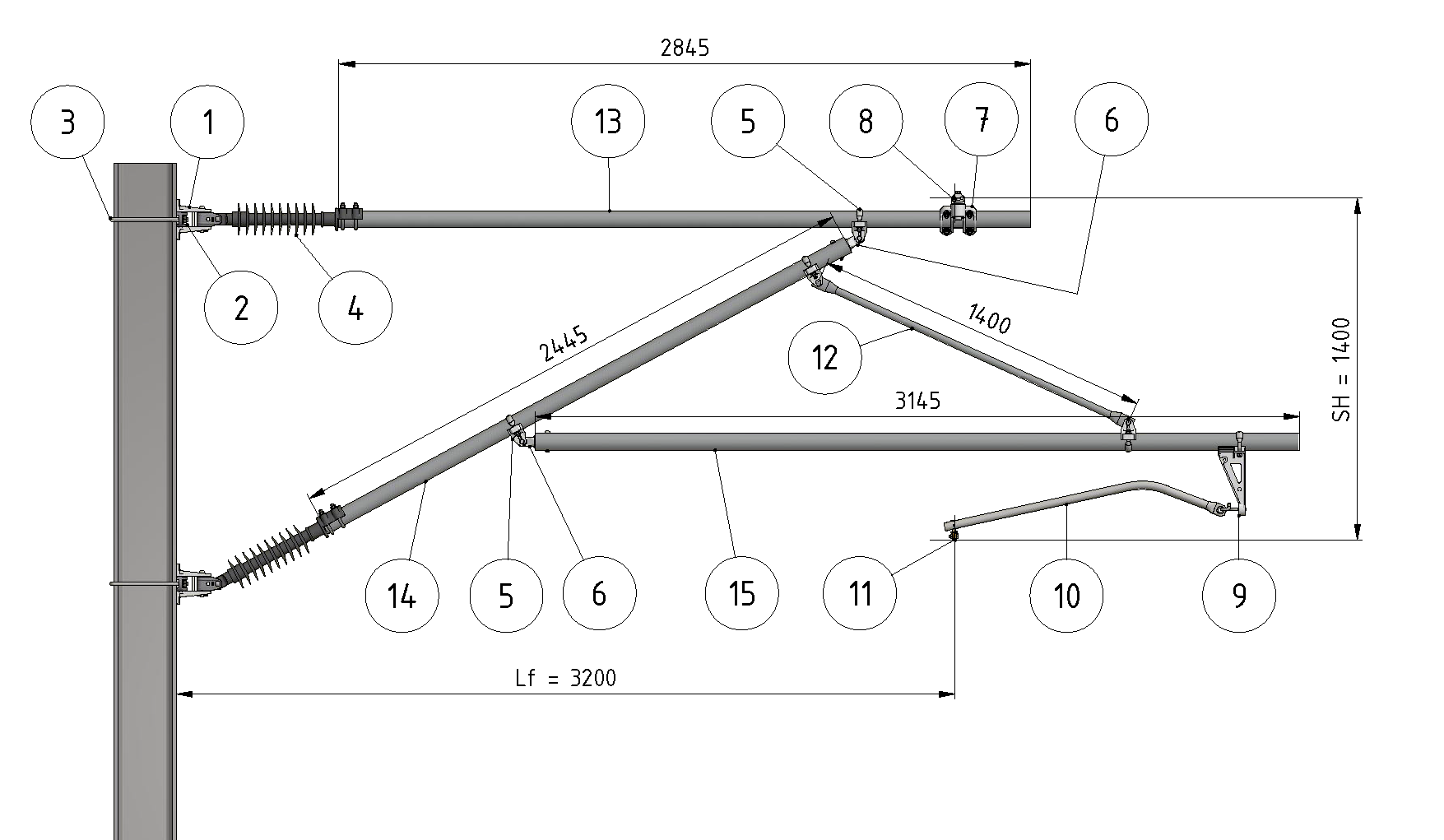

Dimensions
System height = 1400 mmCantilever length = 4600 mm
Steady arm length = 1100 mm
Pipe diameter = 70/7 mm
Material and weight
Pipes: aluminiumFittings: cast aluminium
Connectors: stainless steel
Steady arm: stainless steel
Mast bracket: hot-dip galvanised steel
Insulator: GFRP/silicone
Weight: ~55 kg
Applicable standards
EN50119
EN50163
Specifications
Mast type: HEA260 or HEB260Insulator creepage distance = 1230±3 mm
Contact wire = copper 107 or 120 mm²
Messenger wire = bronze 70 mm²
Highest continuous voltage = 27.5 kV AC
