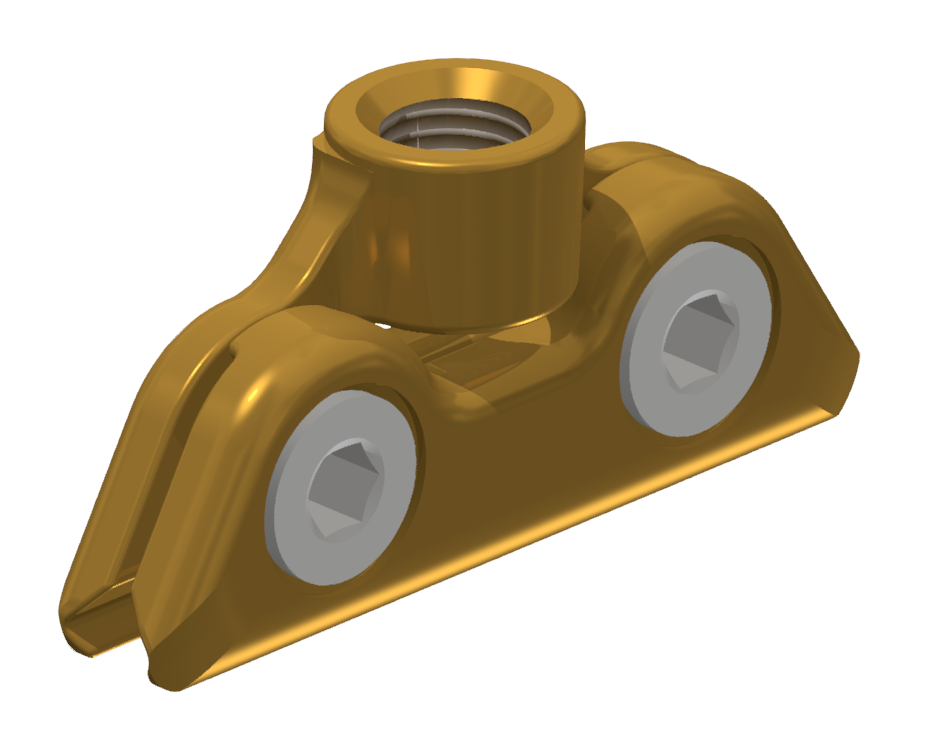

Contact wire clamp ETB with thread 5/8", for grooved contact wire 100-120 mm²

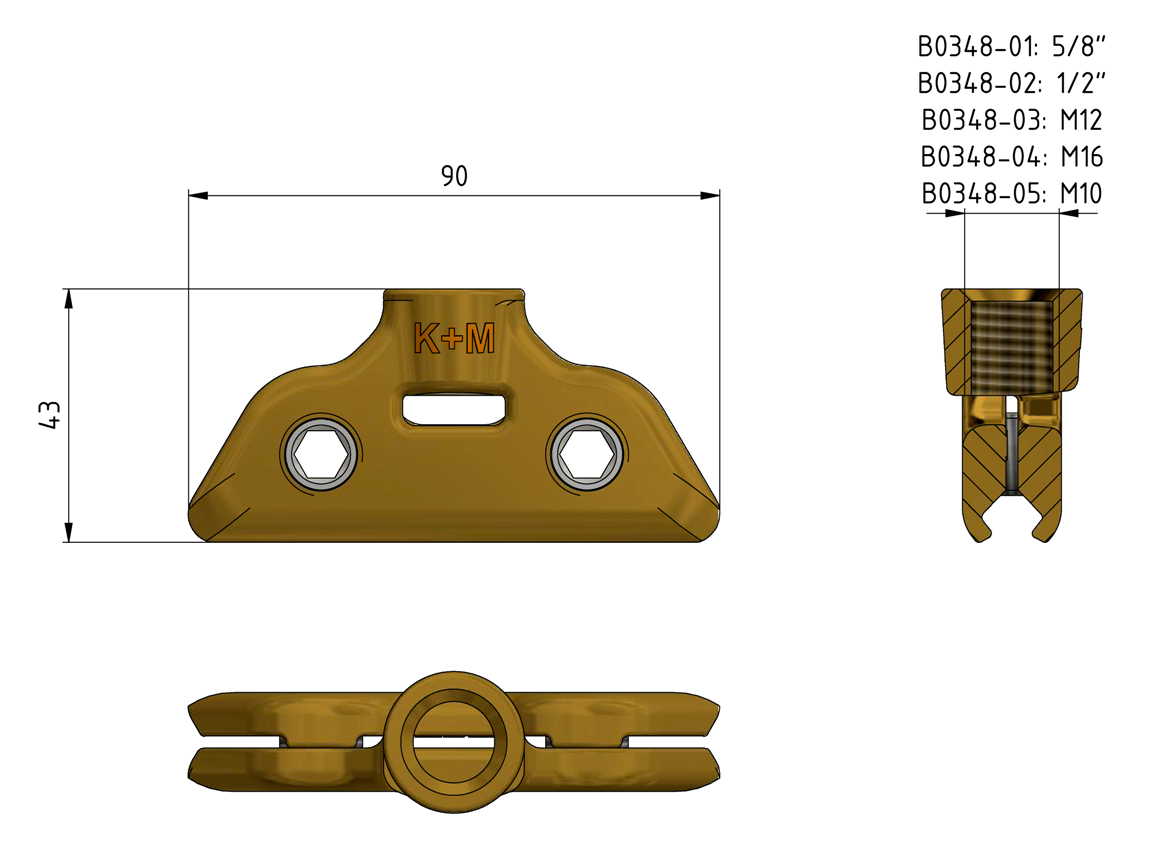

Dimensions

C: 5/8"
B: 43 mm
A: 90 mm

Material and weight

Material: CuAl
Weight: 0.205 kg

Comments

- For grooved contact wire 80 till 120 mm²
  (Other contact wire sections on request)
- Tightening torque on installation
  Counterstunk screw M14 - 40 Nm (29.5 lbf)
