Bracket with off-set swivel for single cast iron weights

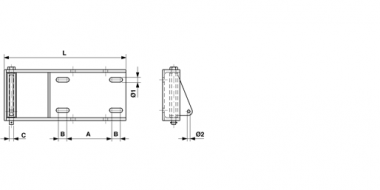

Dimensions

A: 220 mm
Ø2: 18 mm
Ø1: 22 mm
B: 42 mm
C: 14 mm
L: 540 mm

Material and weight

Material: STL HDG

Loads

Breaking load: 65 kN

Comments

- For counterweight to anchor beams
- Attachment to wide flange poles HEB 200-260
- U-bolt Ø= 20 mmPart no. E1484-... (2 pcs.)(to be ordered separately)
