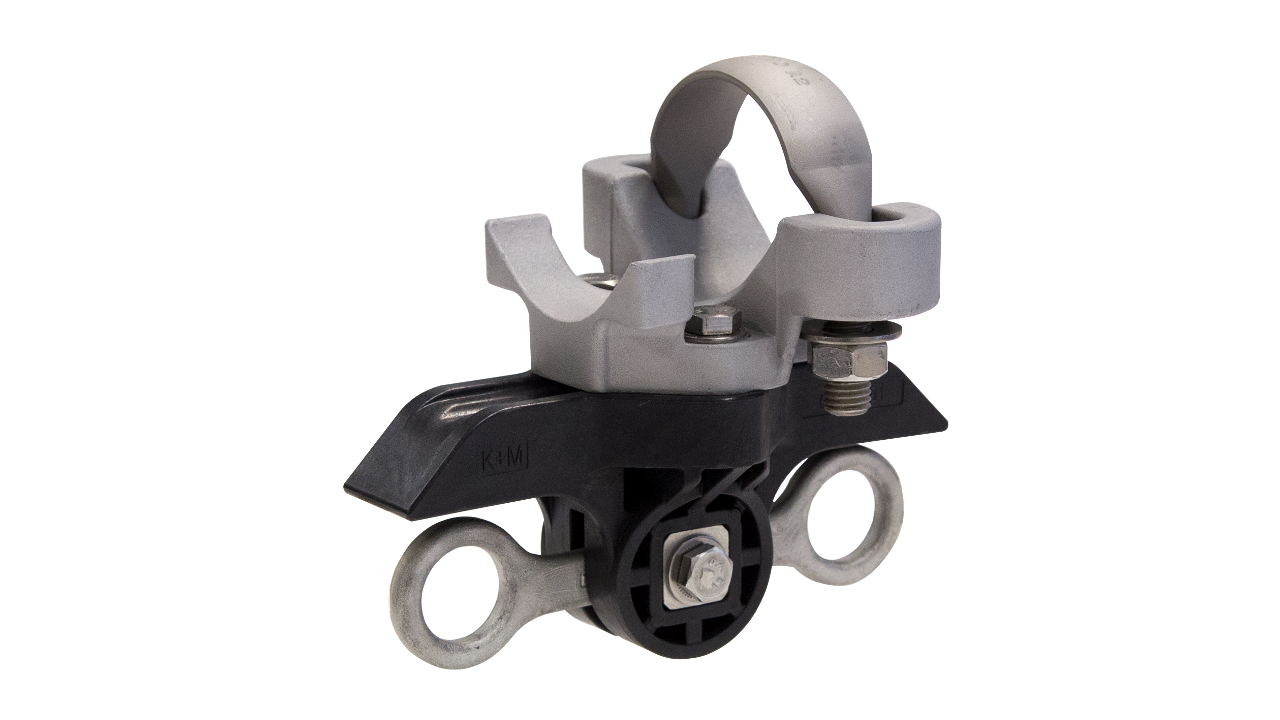

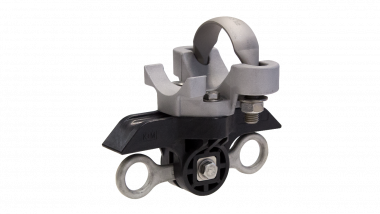

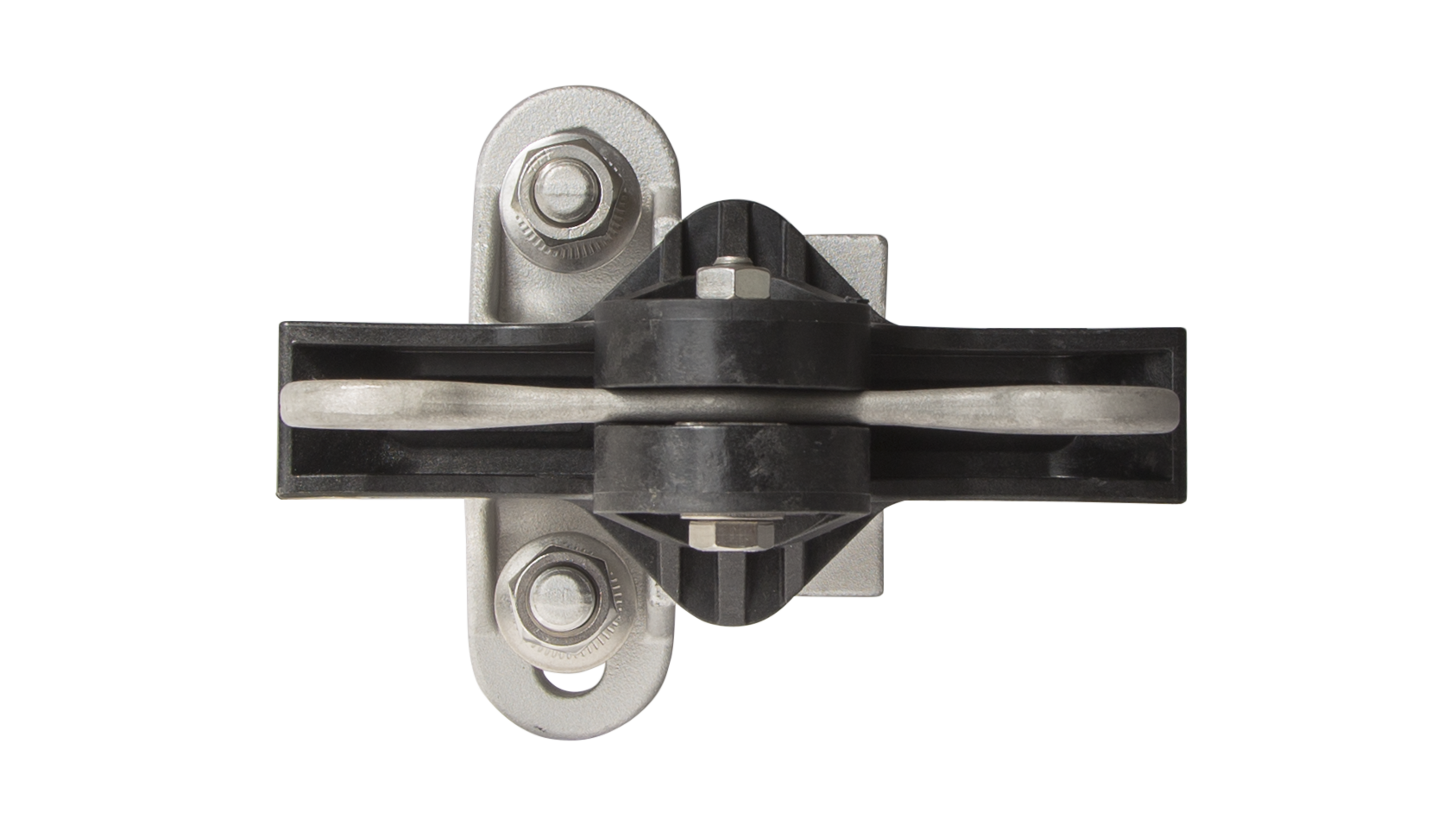

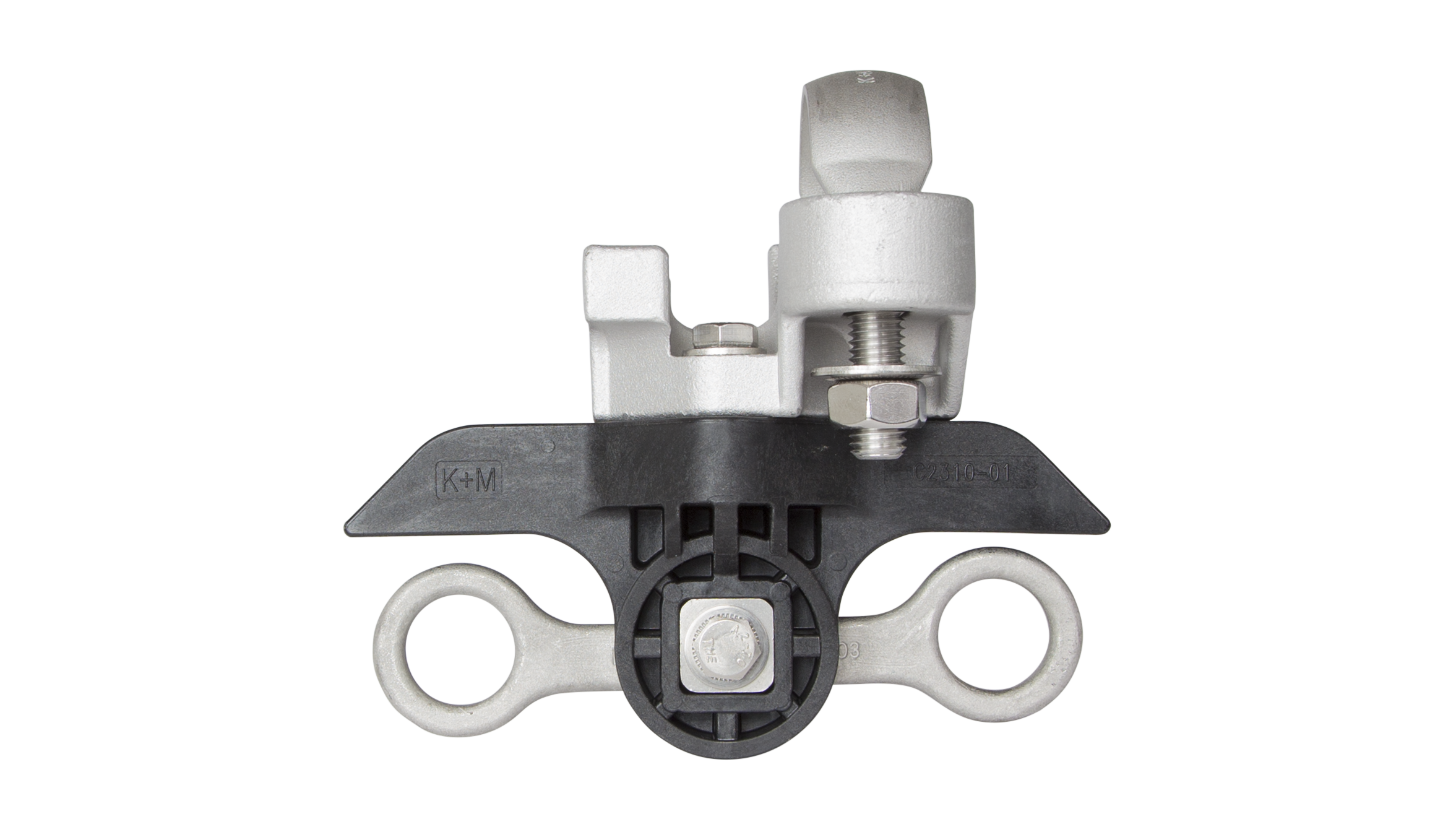

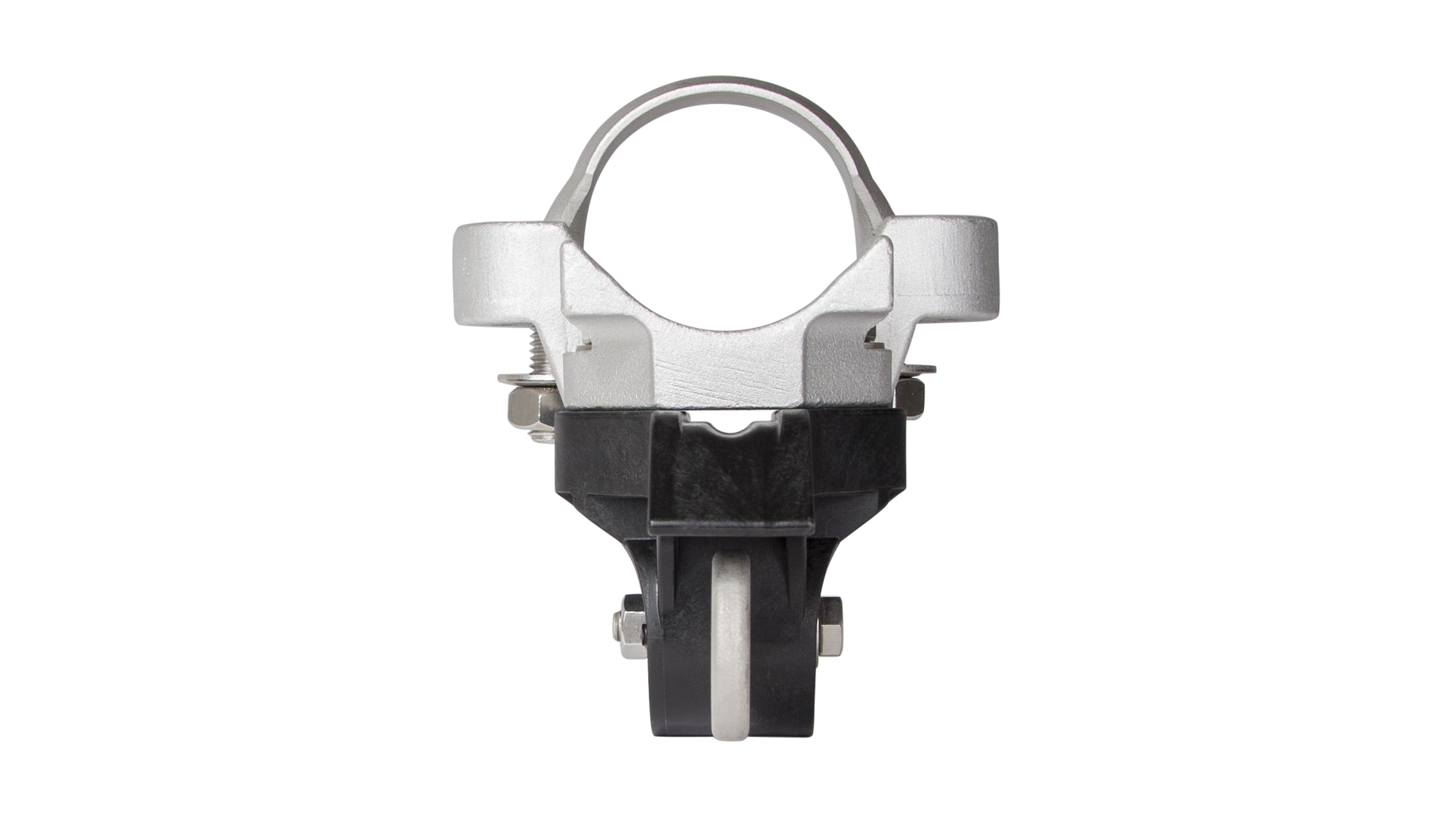

Line insulator KUSYS1 complete suspension double eye, to pipe 2,5"
added to cart
Display basket
C2366-03
Dimensions
A: 164 mmB: 126 mm
C: 173 mm
E: 116 mm
ØD1: 24 mm
ØD2: 2.5" (76.1 mm)
Material and weight
Material: Kst / INOX / AluWeight: 1.25 kg
Loads
Breaking load vertical: 4.2 kNTightening torque for bolts and hex-nuts M8: 17 Nm
Tightening torque for bolts M12: 40 Nm
Applicable standards
DIN EN 50119DIN EN 50124-1
DIN EN 50151
CEI / IEC 60060-1
Function
Insulator body for fastening to pipes in straight segments or slight bends. Continuously adjustable double suspension eye allowing the attachment of the trolleybus pendulum or section insulators.Specifications
Operating voltage: max. 1500 V DCComments
The application in overhead contact lines requires a wide insulation of the support structure to the support bases.Optional: Exchanging the u-bolt allows mounting to pipes Ø45 – 80mm mm.
The suspension can be mounted to cross-spans or ceilings by exchanging the clamp.
