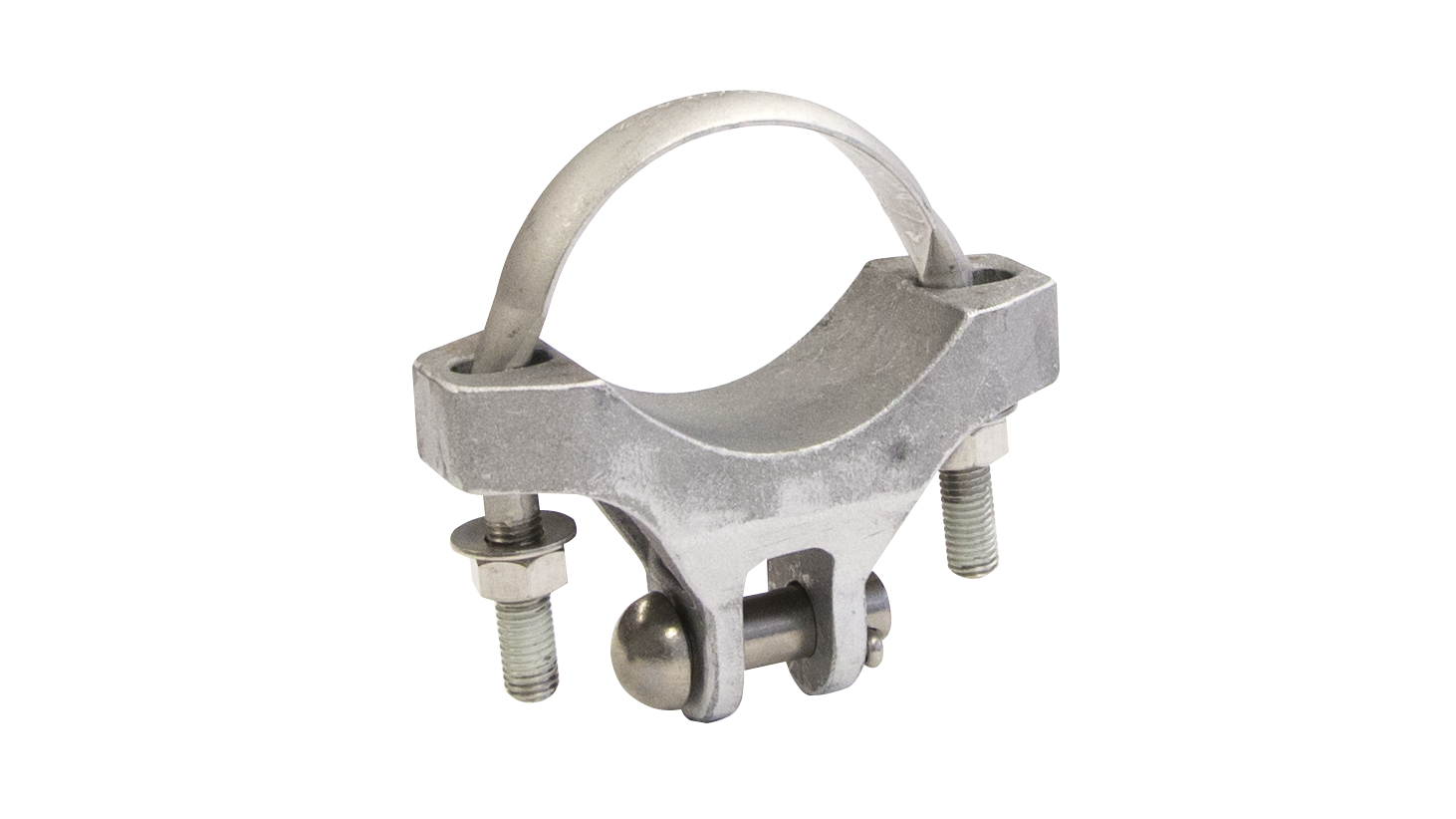

Pipe attachment complete, with U-bolt, to pipe G2.5"

D2336-02

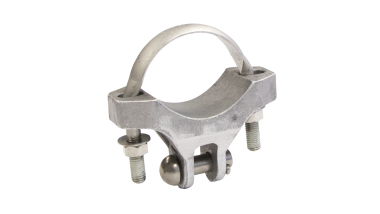

Pipe attachment complete, with U-bolt, to pipe G2.5"
Pipe attachment complete, with U-bolt, to pipe G2.5"

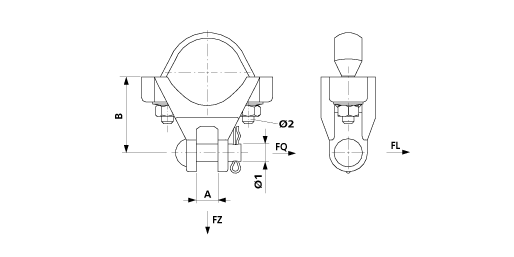

Dimensions

B: 70 mm
A: 20 mm
Ø1: 16 mm
Ø2: M12

Material and weight

Material: Al/SST
Weight: 0.620 kg

Loads

Breaking load F along: of clevis fork 14.0 kN
Breaking load F across: of clevis fork 4.5 kN
Breaking load F on traction: 30.0 kN

Comments

- Additional executions on request
