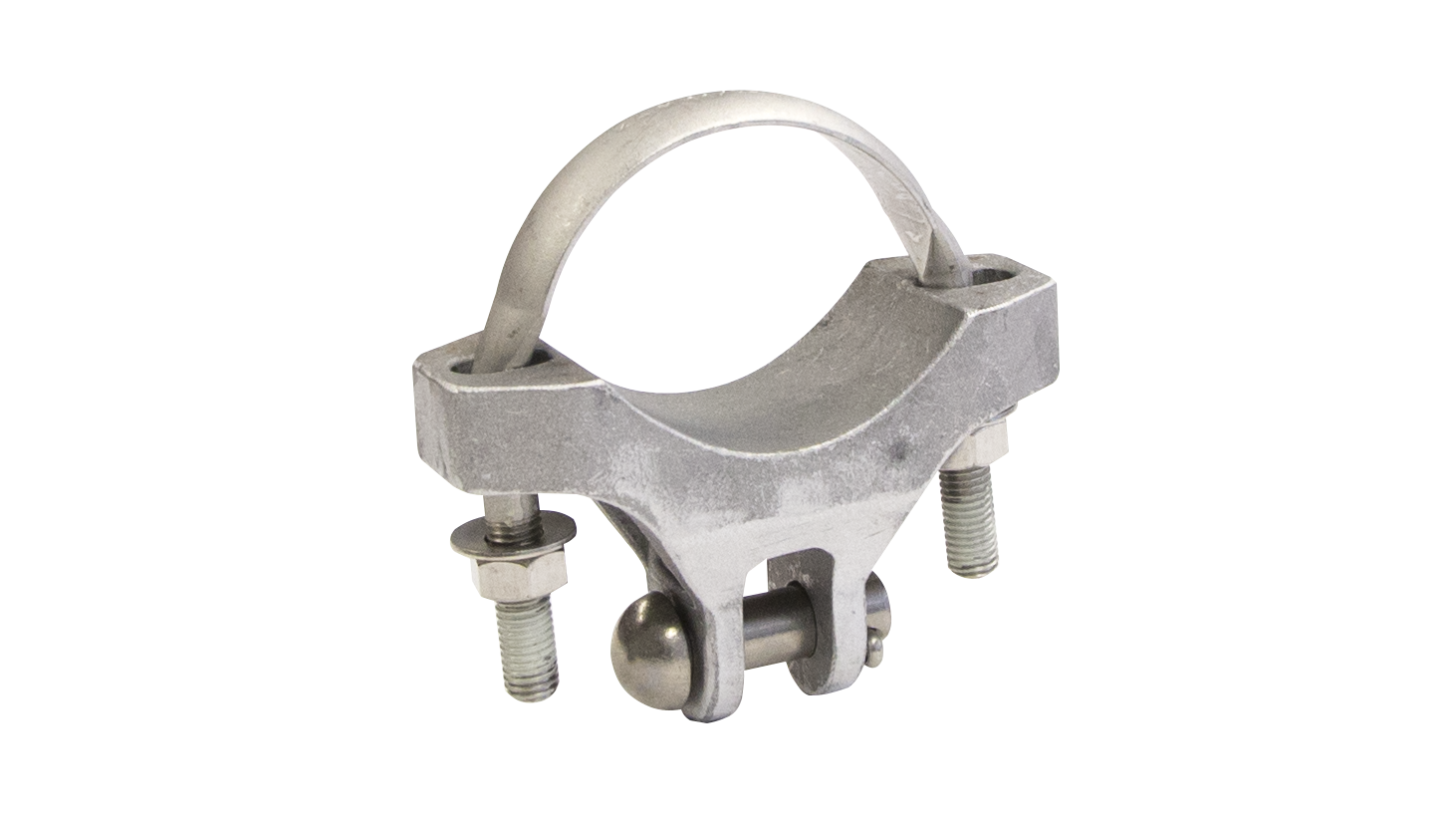

Pipe attachment complete, with U-bolt, to pipe Ø = 70 mm

D2336-03

Pipe attachment complete, with U-bolt, to pipe Ø = 70 mm
Pipe attachment complete, with U-bolt, to pipe Ø = 70 mm

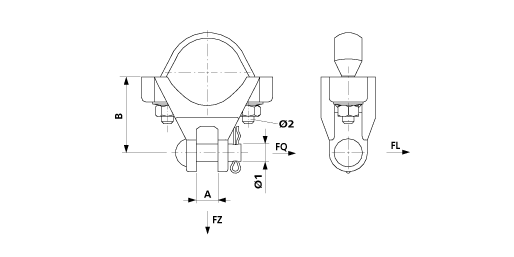

Dimensions

B: 70 mm
A: 20 mm
Ø1: 16 mm
Ø2: M12

Material and weight

Material: Al/SST

Loads

Breaking load F along: of clevis fork 14.0 kN
Breaking load F across: of clevis fork 4.5 kN
Breaking load F on traction: 30.0 kN

Comments

- Additional executions on request
