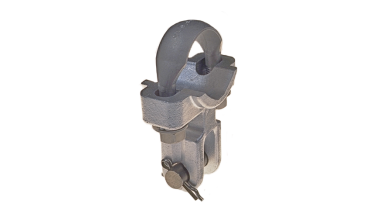

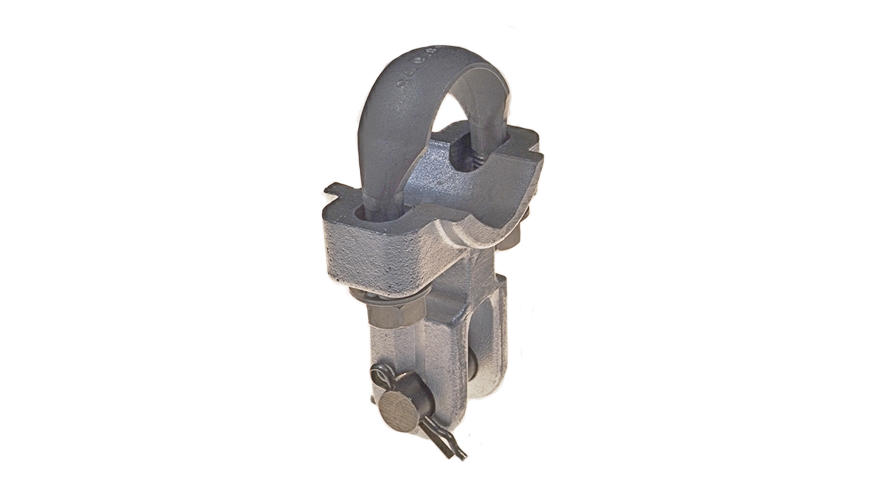

Pipe attachment complete, with U-bolt, to pipe Ø = 38 mm

D2338-02

Pipe attachment complete, with U-bolt, to pipe Ø = 38 mm
Pipe attachment complete, with U-bolt, to pipe Ø = 38 mm

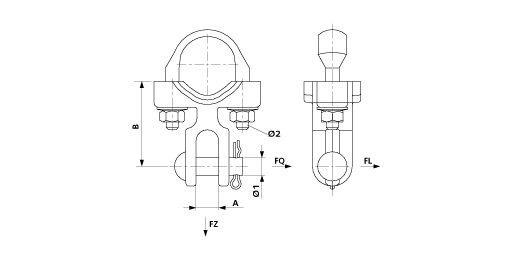

Dimensions

B: 75.5 mm
Ø2: M12
A: 20 mm
Ø1: 16 mm

Material and weight

Material: Al/SST
Weight: 0.550 kg

Loads

Breaking load F on traction: 30.0 kN
Breaking load F across: of clevis fork 2.5 kN
Breaking load F along: of clevis fork 6.0 kN

Comments

- Additional executions on request
- Part no. D2338-02:
For steady arm connection to pipe
for drop bracket clamp
FL= along
FZ= on traction
FQ= across
