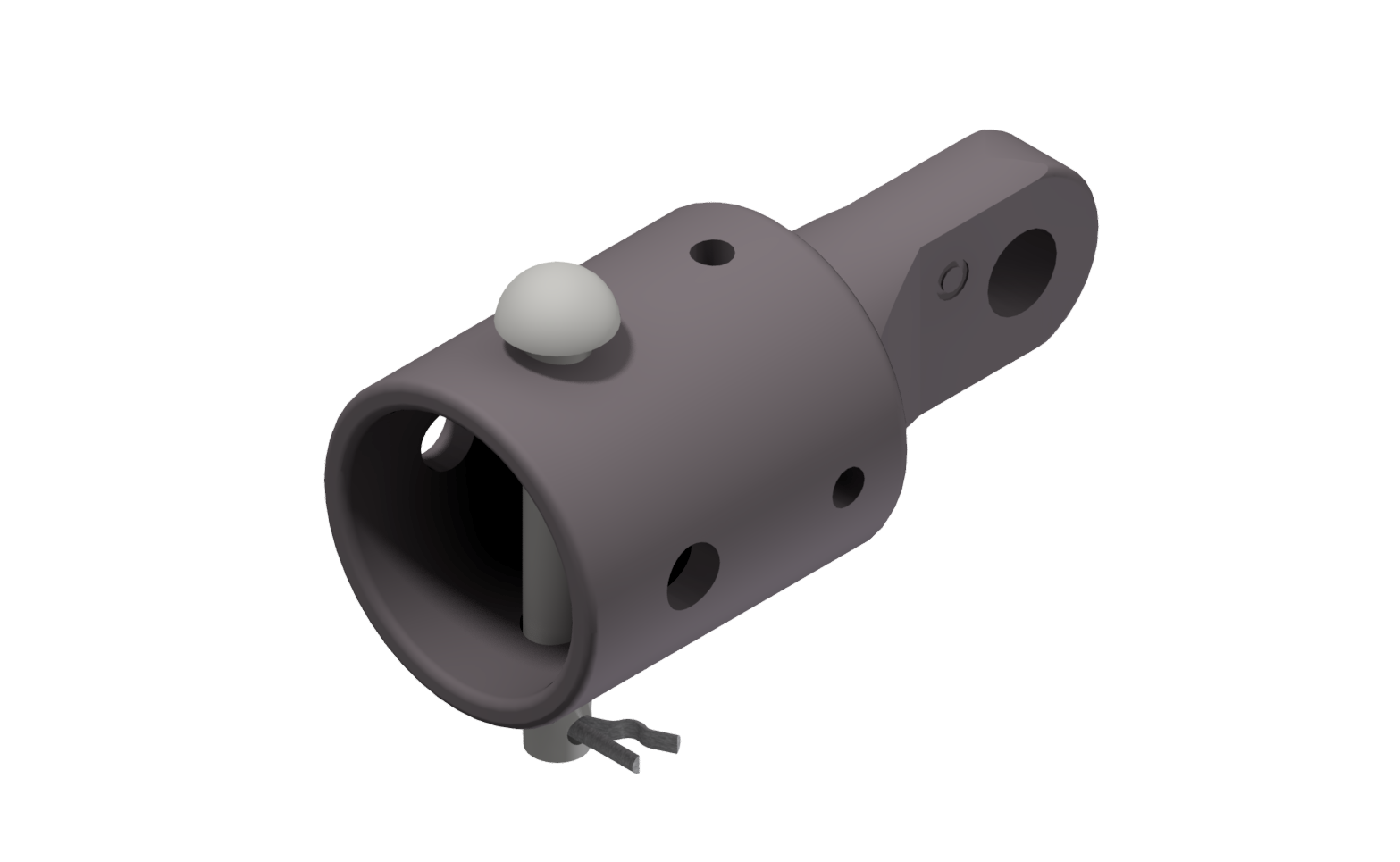

Pipe connector with tongue, complete, to pipe G2.5"

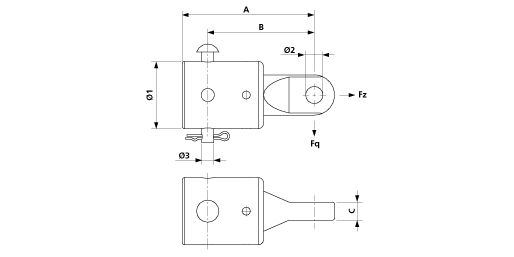

Dimensions

C: 18 mm
Ø2: 17 mm
Ø3: 12 mm
A: 130 mm
B: 105 mm
Ø1: 66.8 mm

Material and weight

Weight: 0.490 kg
Material: Al/SST

Loads

Breaking load F across: 15 kN

Comments

- The pipe connector G2" and additionally the distance bushing part no. E 3259-01 must be used for pipe G2.5" w/reinforced wall
- Other pole diameter on request
