Adjustable steady arm, type 114, with thread M16, SST

D2455-05

Adjustable steady arm, type 114, with thread M16, SST

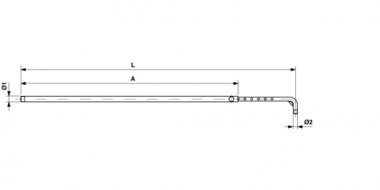

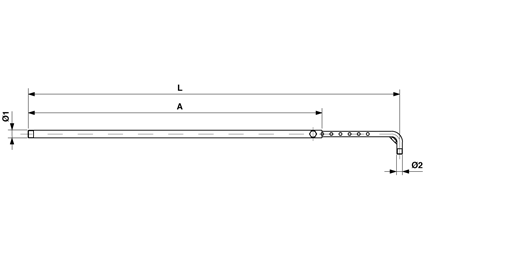

Dimensions

Ø2: M16
Ø1: G0.5"
L max.: 1500 mm
L min.: 1200 mm
A: 1100 mm

Material and weight

Material: SST
Weight: 2.310 kg

Comments

- Steady arm pipe (SST) for types 44-194: part no. D1665-01 to D1665-09
- Regulation rod (SST) for types 69-194: part no. D2454-02 - Clevis eye G0.5" for steady arm connection (SST) part no. E0109-01 (to be ordered separately)
- Connection cap G0.5" for steady arm direct to porcelain insulator or to pole (SST) part no. E3260-01 (to be ordered separately)
- Fork clevis G0.5" for steady arm connection (Bz) part no. E2839-01 (to be ordered separately)
- Other lengths on request
