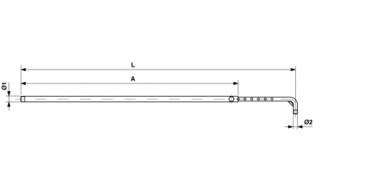

Adjustable steady arm, type 134, with thread M16, SST

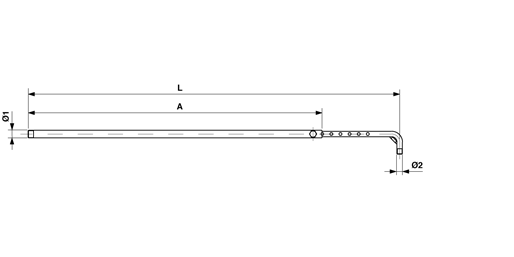

Dimensions

Ø2: M16
Ø1: G0.5"
A: 1300 mm
L max.: 1700 mm
L min.: 1400 mm

Material and weight

Weight: 2.600 kg
Material: SST

Comments

- Steady arm pipe (SST) for types 44-194: part no. D1665-01 to D1665-09
- Regulation rod (SST) for types 69-194: part no. D2454-02 - Clevis eye G0.5" for steady arm connection (SST) part no. E0109-01 (to be ordered separately)
- Connection cap G0.5" for steady arm direct to porcelain insulator or to pole (SST) part no. E3260-01 (to be ordered separately)
- Fork clevis G0.5" for steady arm connection (Bz) part no. E2839-01 (to be ordered separately)
- Other lengths on request
