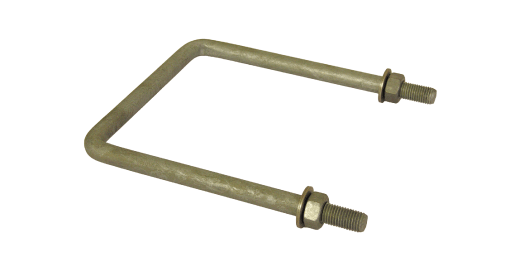

U-bolts, Ø = 16 mm to HEB 120

D2476-02

U-bolts, Ø = 16 mm to HEB 120
U-bolts, Ø = 16 mm to HEB 120

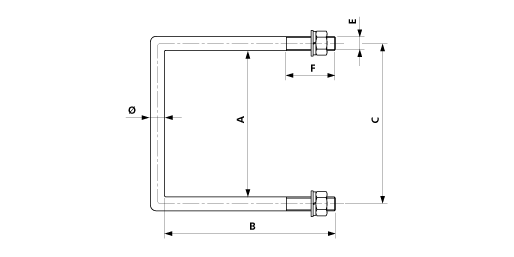

Dimensions

Ø: 16 mm
E: M16
F: 40 mm
A: 124 mm
B: 166 mm
C: 140 mm

Material and weight

Material: STL HDG

Comments

- U-bolts for poles type HEA and HEM on request
