Top pipe, SST G2.5", L min. = 1.00 m, L max.= 12.00 m
added to cart
Display basket
D2482

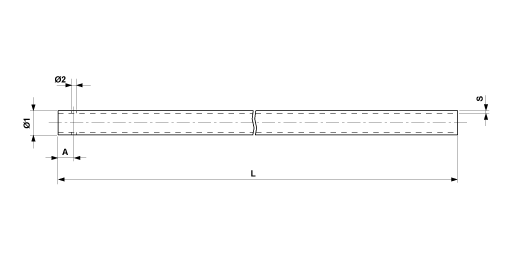

Dimensions
A: 50 mm
Ø2: 13.5 mm
Ø1: 76.1 mm
S: 3.60 mm
L: var. mm
Material and weight
Material: SSTWeight: 6.440 kg/m
Comments
- For ARCAS system- The length of the top pipes is stepped from 0.25 m to 0.25 m
We kindly ask you to indicate the requested lengths on orders
- Additional pipe dimensions on request
- Top pipes GRP on request
