Strut pipe, SST G2", L min. = 1.00 m, L max. = 5.00 m

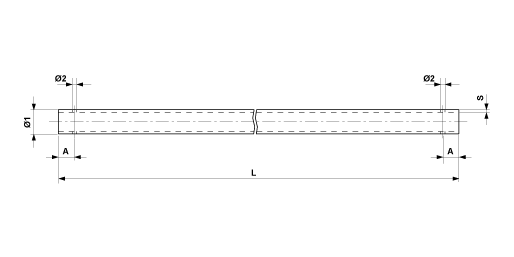

Dimensions

A: 50 mm
Ø1: 60.3 mm
Ø2: 13.5 mm
S: 3.60 mm
L: var. mm

Material and weight

Material: SST
Weight: 5.030 kg/m

Comments

- The length of the strut pipes is stepped from 0.25 m to 0.25 m
We kindly ask you to indicate the requested lengths on orders
- Additional pipe dimensions on request
