Registration pipe, SST G1.5", L min. = 0.50 m, L max. = 6.00 m

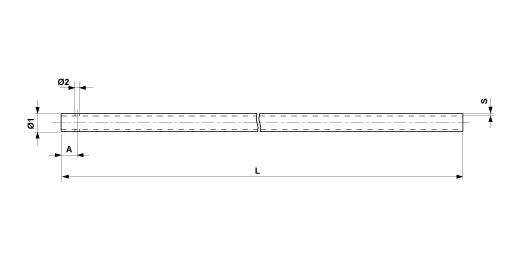

Dimensions

A: 50 mm
Ø2: 13.5 mm
Ø1: 48.3 mm
S: 3.2 mm
L: var. mm

Material and weight

Material: SST
Weight: 3.560 kg

Comments

- The length of the registration pipes is stepped from 0.25 m to 0.25 m
We kindly ask you to indicate the requested lengths on orders
- Pipe diameter >G1.5" and > Ø= 50 mm correspond to top pipes
- Additional pipe dimensions on request
