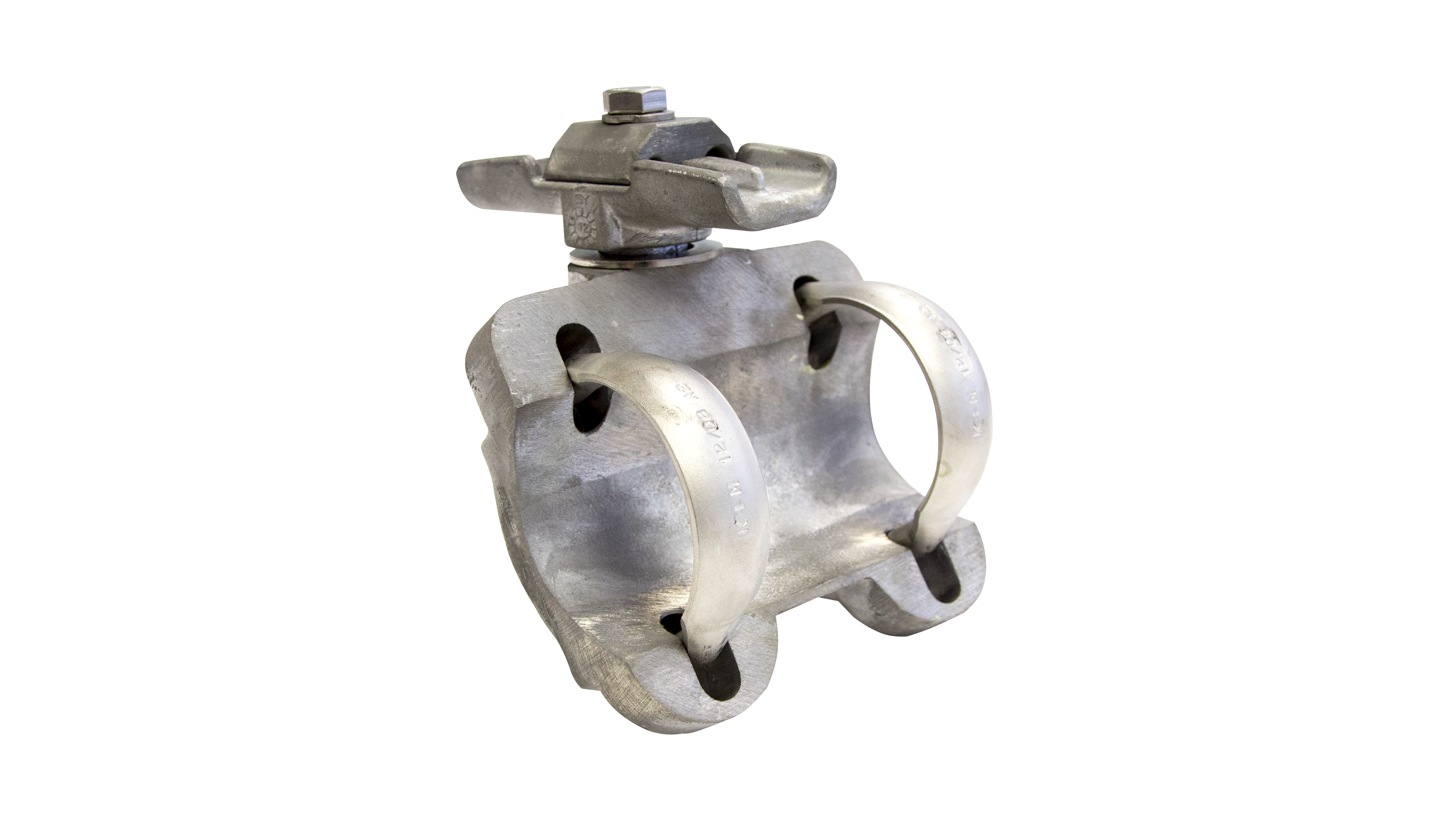

Messenger cable suspension non insulated, rotatable, reinforced, to pipe D = 90 mm, cable Ø max. 13 mm

Dimensions

B: 80 mm
A: 28 mm
C: 62 mm

Material and weight

Material: Al/SST

Loads

Breaking moment M: 1200 Nm

Comments

- A protection sleeve has to be used (to be ordered separately)
- The installation side of the messenger cable has to be selected so that the lateral force cause by the curve pull act in direction of the cap screw
