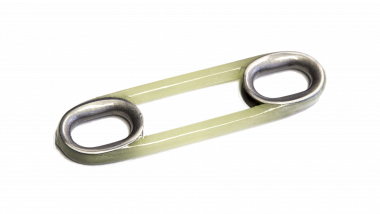

Loop insulator with closed thimbles oval, A= 150 mm

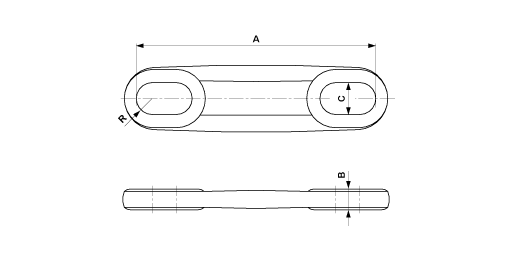

Dimensions

C: 20 mm
A: 150 mm
R: 10.000 mm
B: 12 mm

Material and weight

Weight: 0.115 kg

Loads

Breaking load: 45 kN

Specification

Operating voltage: max. 1.500 kV
Ambient temperature: -30° C up to +80° C

Comments

- GRP insulation, thimbles SST
- Surface with ultraviolet-proof protecting lacquer
- We draw your attention to the fact that the loop insulator D2786-01 is not suitable for areas exposed to external influences (sea side, areas with extreme environmental pollution).
- No load on torsion
