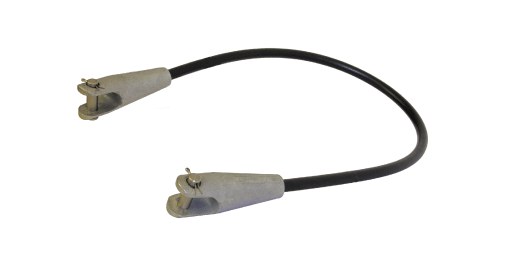

Damper, Ø = 13.5 mm, L = 1000 mm, with sealing

D3328-02

Damper, Ø = 13.5 mm, L = 1000 mm, with sealing
Damper, Ø = 13.5 mm, L = 1000 mm, with sealing

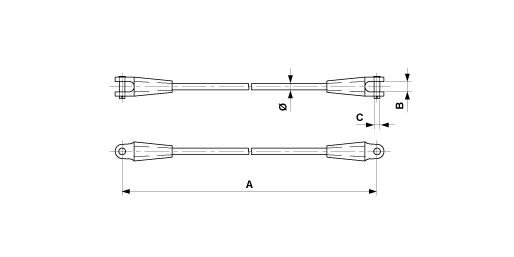

Dimensions

B: 22 mm
Ø: 13.5 mm
A: 1000 mm
C: 12 mm

Material and weight

Weight: 0.595 kg
Material: Cable synth.
Material: Material of terminals Al/SST

Loads

Breaking load: 35 kN

Comments

For an insulating function, a minimum length of the plastic rope of 1 m is required. (cf. EN 50345)
