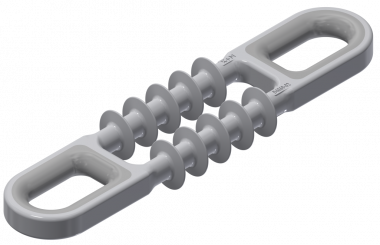

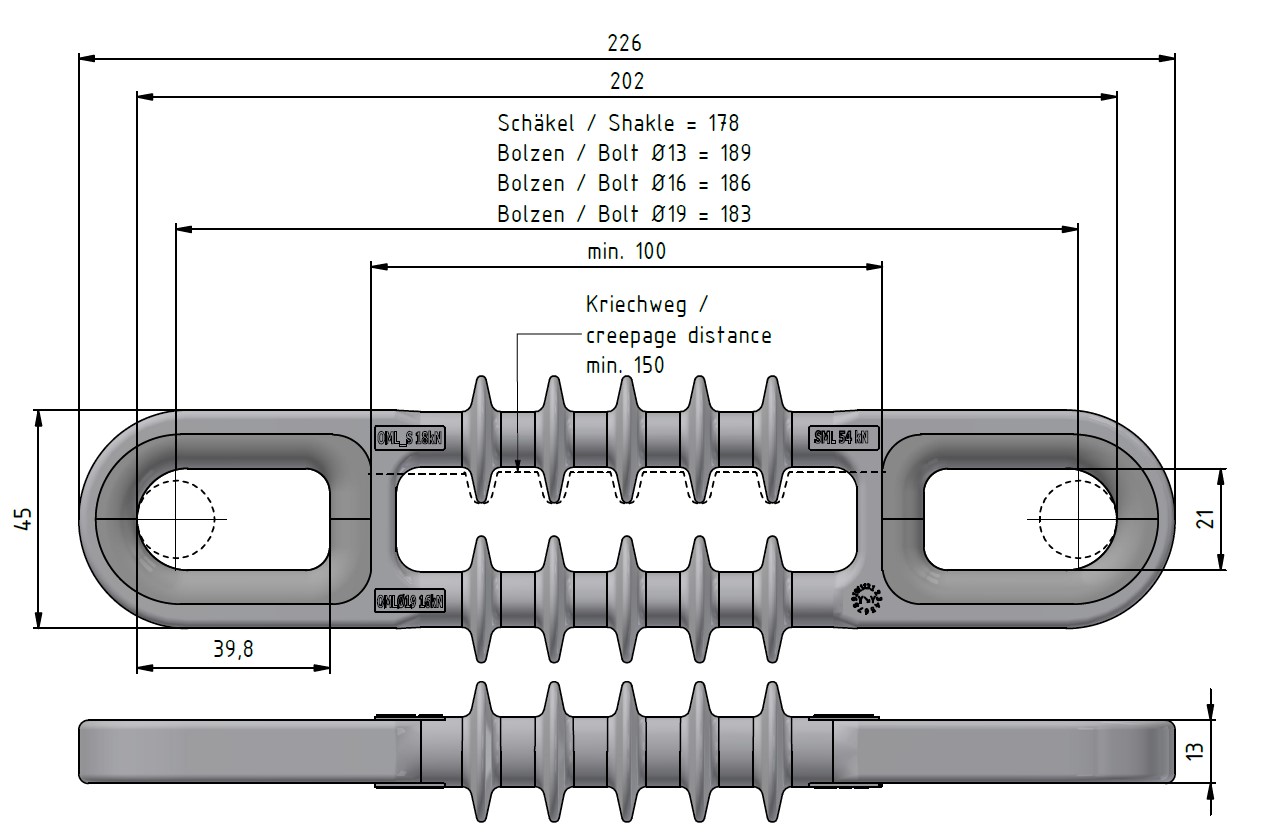

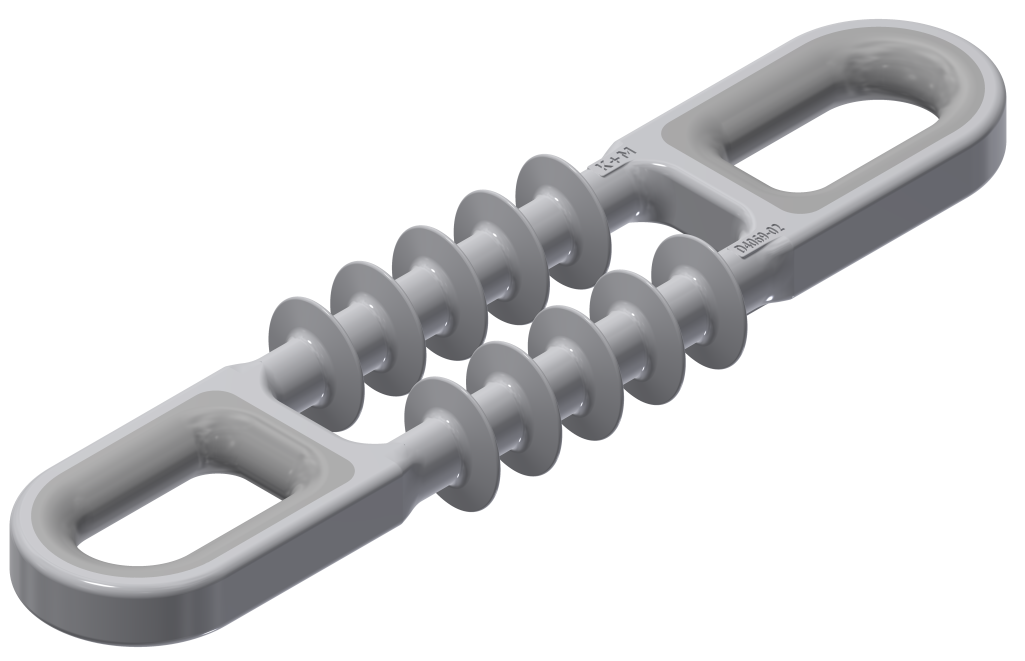

KULOOP Loop insulator long 1,5 kV
Request for quotation (D4069-02
Applicable standards
Insulator acc. EN 50124-1, IEC 61952, IEC 62217
Specification
| System voltage (Um) | 1,5 kV |
| Power-frequency voltage (50 Hz), wet (50 Hz) | 6,9 kV |
| Lightning impulse voltage 1,2/50 | 15 kV |
| Minimal creepage distance | ~ 140 mm |
| Minimal arcing distance | 100 mm |
| Specified mechanical load (SML) in combination with shackle E0928 | 54 kN |
| Permissable operating load (OML) in combination with shackle E0928 | 18 kN |
| Specified mechanical load (SML) in combination with bolt Ø19 | 48 kN |
| Permissable operating load (OML) in combination with bolt Ø19 | 16 kN |
| Specified mechanical load (SML) in combination with bolt Ø16 | 45 kN |
| Permissable operating load (OML) in combination with bolt Ø16 | 15 kN |
| Specified mechanical load (SML) in combination with bolt Ø13 | 42 kN |
| Permissable operating load (OML) in combination with bolt Ø13 | 14 kN |
