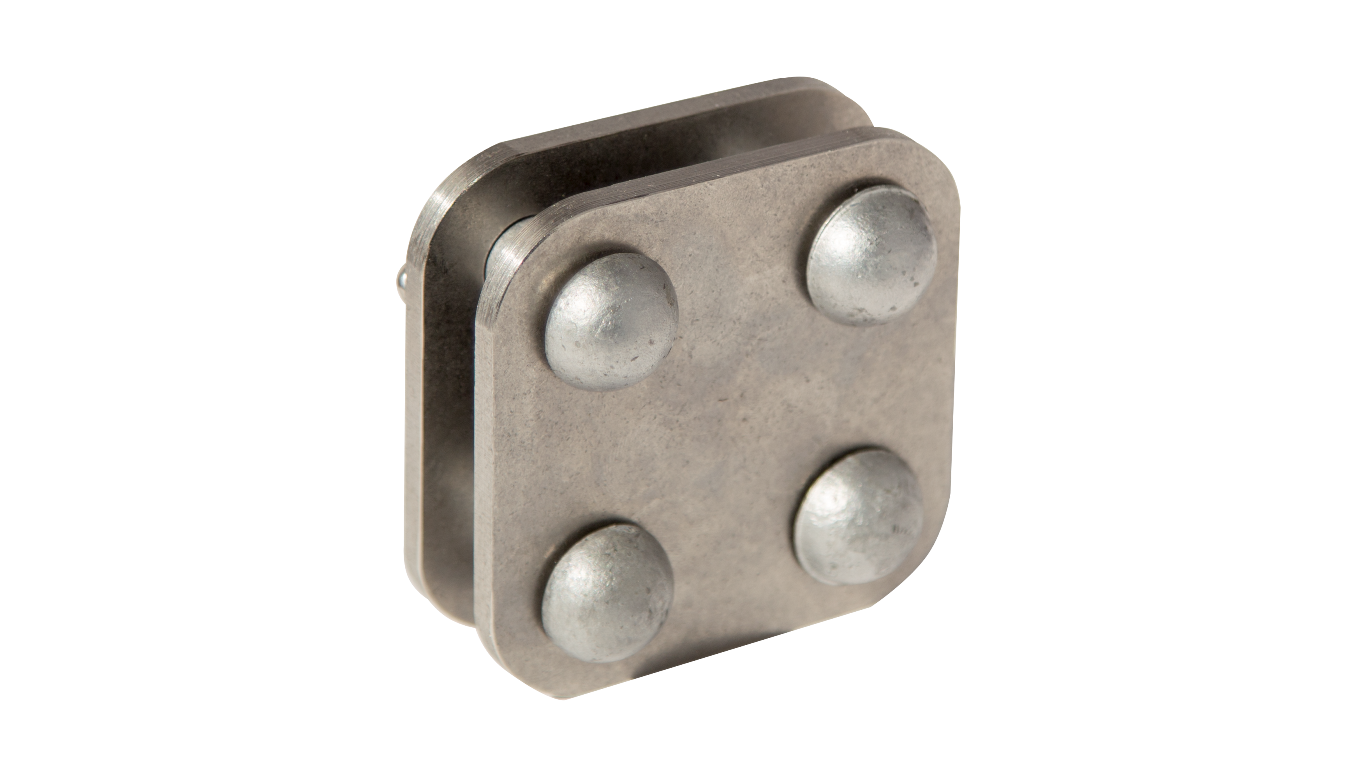

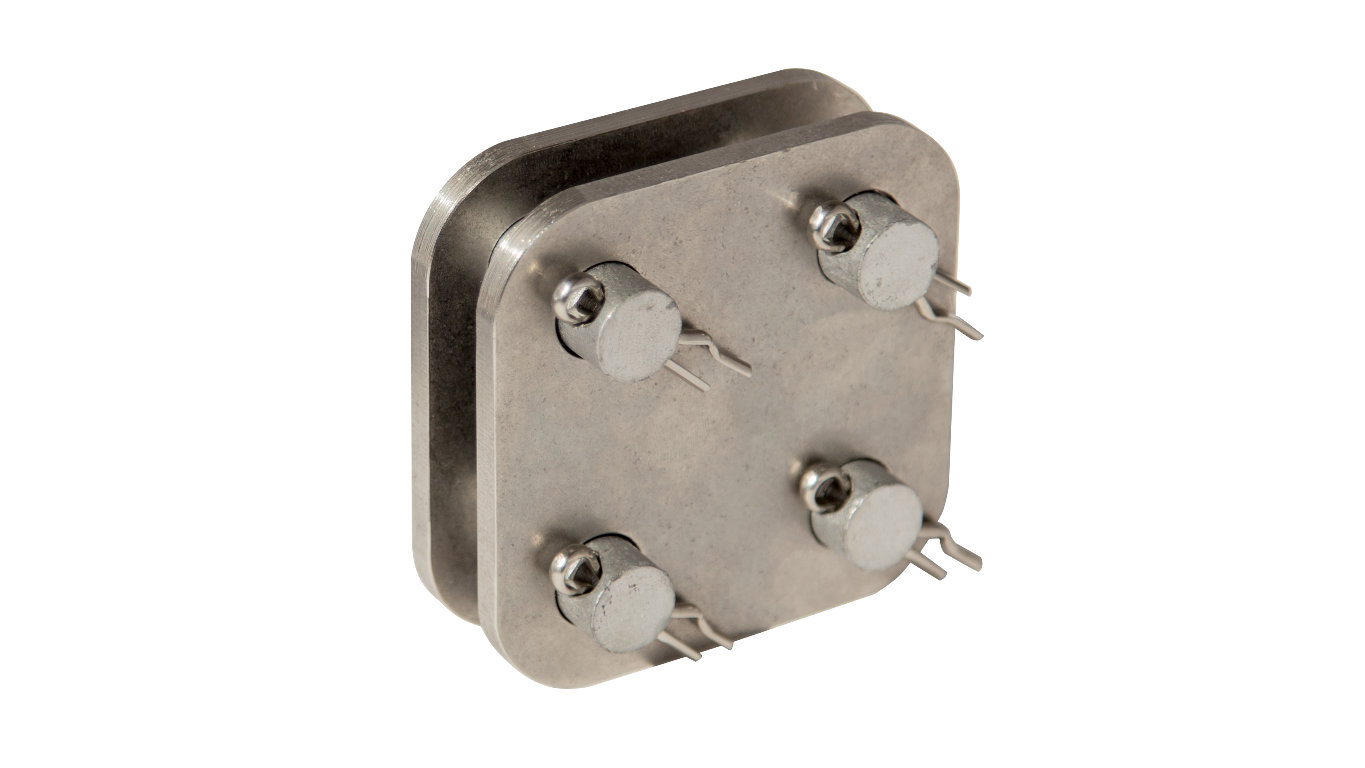

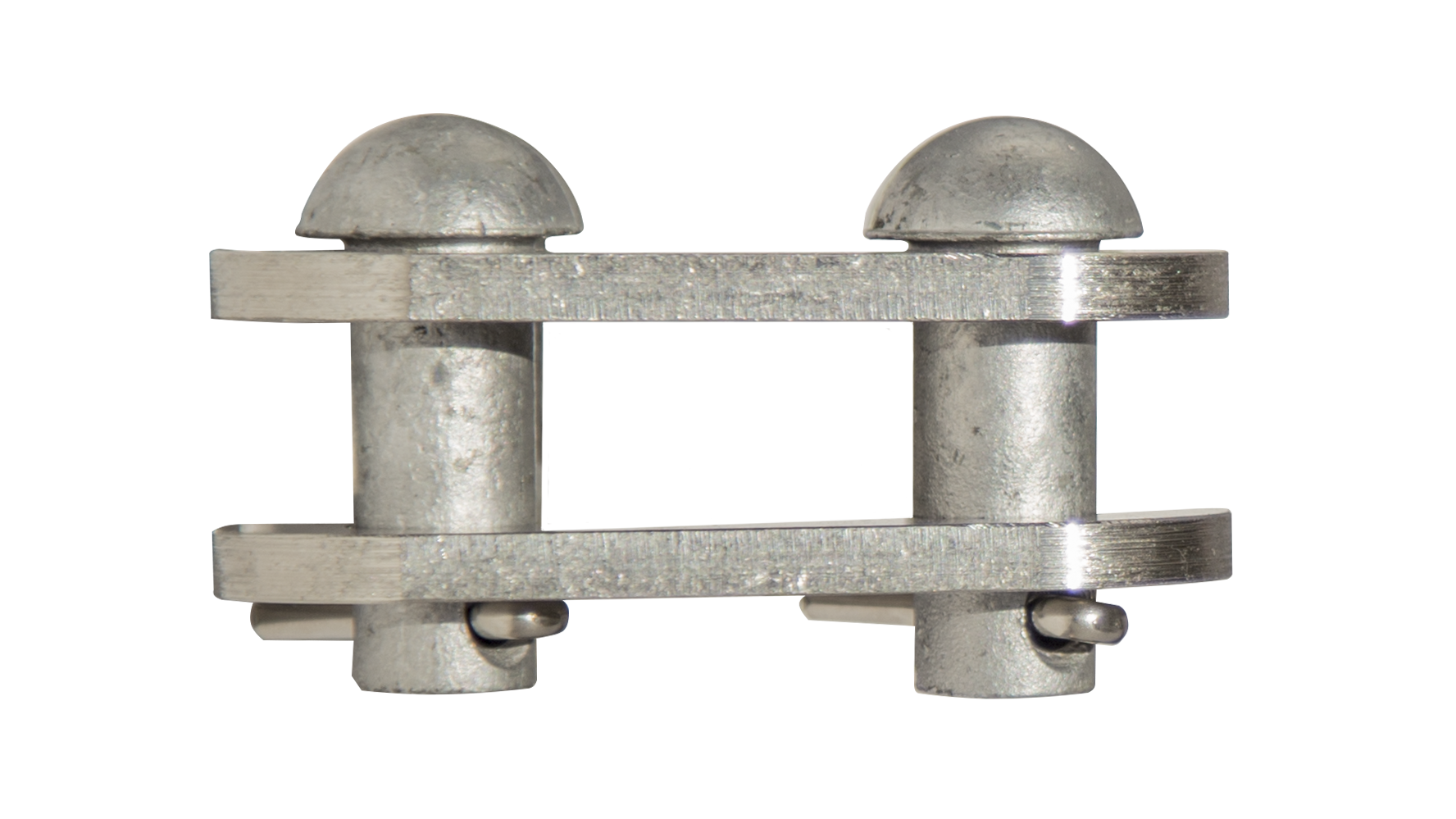

Double four hole plate with pin

E1249-02

Double four hole plate with pin
Double four hole plate with pin
Double four hole plate with pin
Double four hole plate with pin
Double four hole plate with pin
Double four hole plate with pin

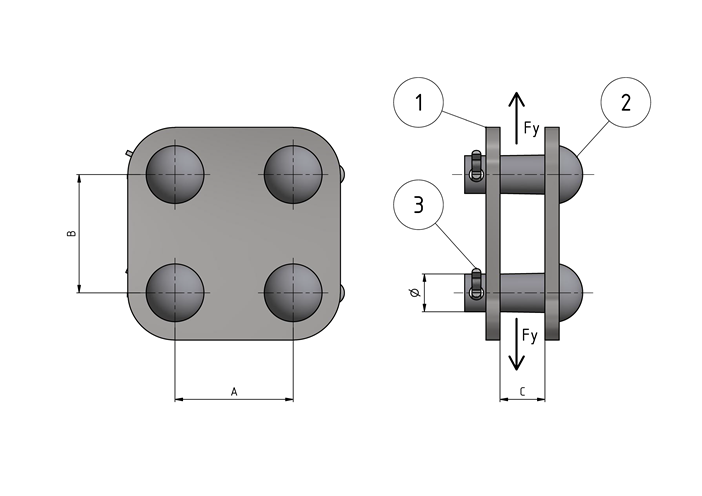

Dimensions

A: 50 mm
B: 50 mm
C: 19 mm
Ø: 16 mm

Material and weight

Weight: 1 kg

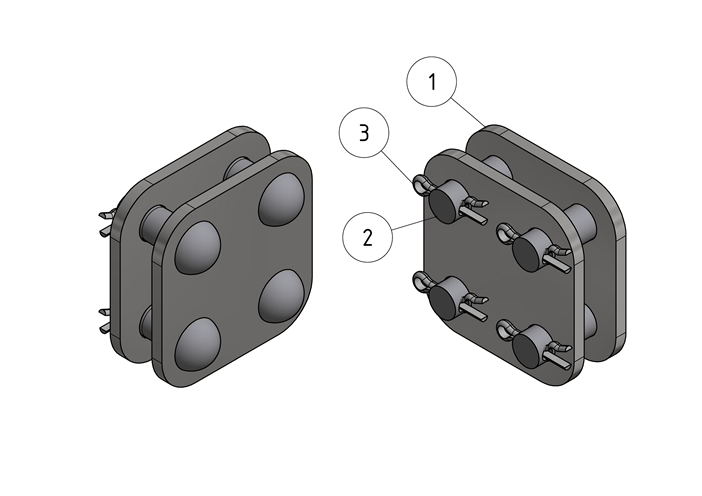

Material:
1: SST
2: STL HDG
3: SST

Loads

Critical load Fy: 72 kN
