Railway
Catenary
Products
Forked links

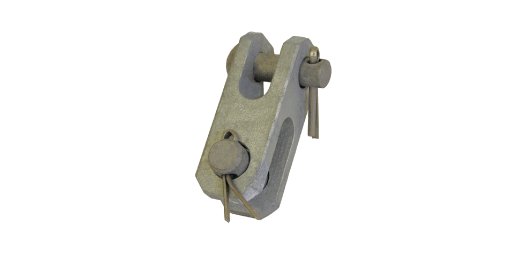

Twisted link
Request for quotation (
0
)
added to cart
Display basket
E1779-01

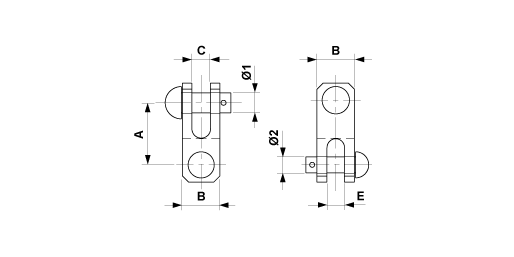

Dimensions
C: 15 mm
A: 50 mm
B: 30 mm
Ø1: 16 mm
Ø2: 13 mm
E: 14 mm
Material and weight
Weight: 0.410 kg
Material: STL HDG
Loads
Breaking load: 50 kN
In the basket
Replacement parts
Split pin, 4.0 x 32
350509
In the basket
Pin, 16 x 40
E3200-04
In the basket
Pin, 13 x 40
E3200-03
In the basket
Request for quotation (
