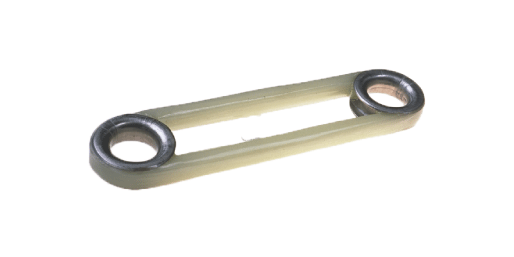

Loop insulator with closed thimbles round, type 4, L = 255 mm

E3221-04

Loop insulator with closed thimbles round, type 4, L = 255 mm
Loop insulator with closed thimbles round, type 4, L = 255 mm

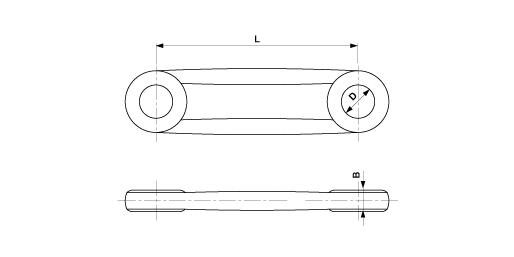

Dimensions

B: 16 mm
D: 19.5 mm
L: 255 mm

Material and weight

Weight: 0.220 kg

Loads

Breaking load: 75 kN

Specification

Operating voltage: max. 3.0 kV

Comments

- GRP insulation, closed thimbles SST
- Surface with ultraviolet-proof protecting lacquer
- We draw your attention to the fact that the loop insulators are not suitable for areas exposed to external influences (sea side, areas with extreme environmental pollution).
- No load on torsion
