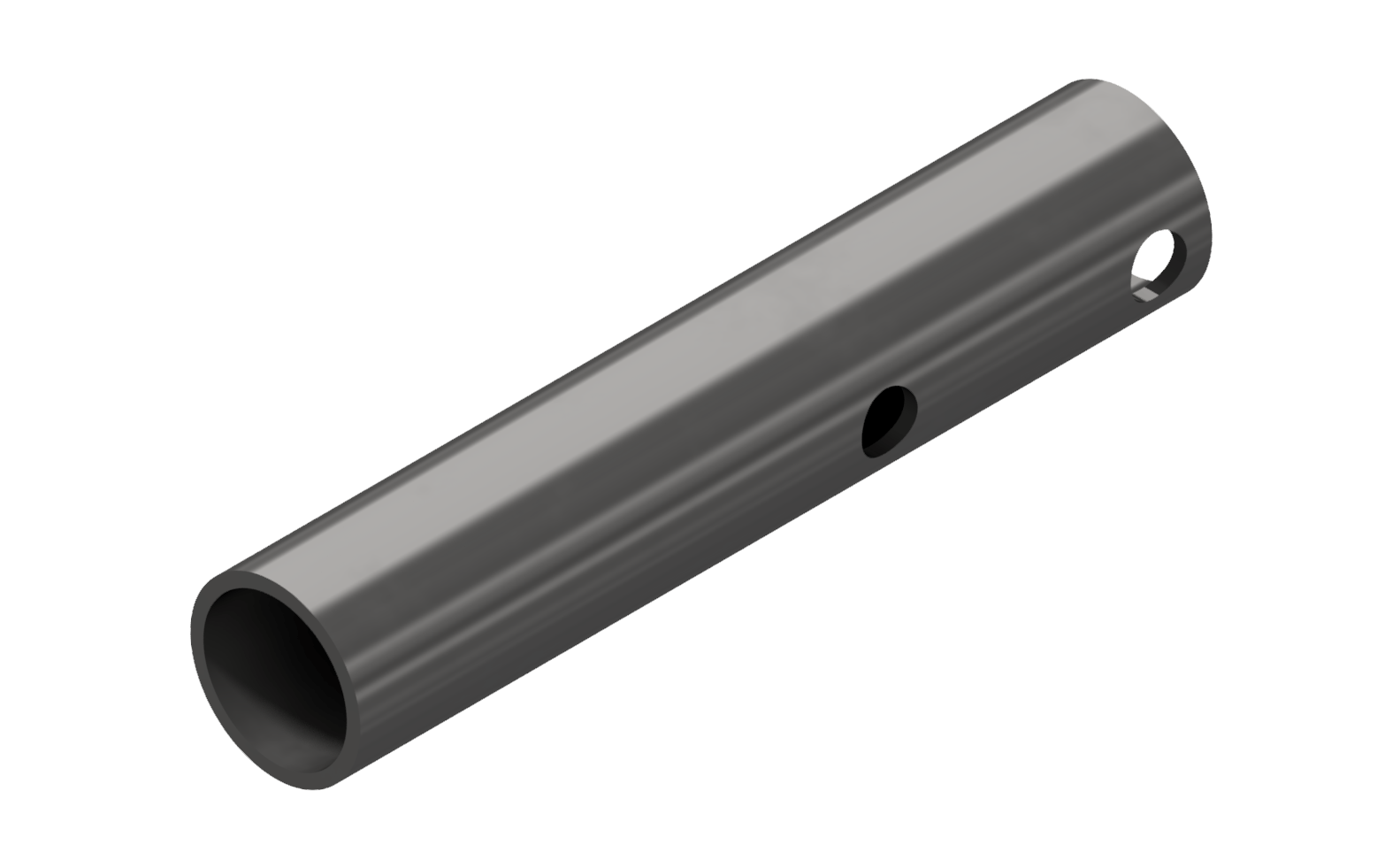

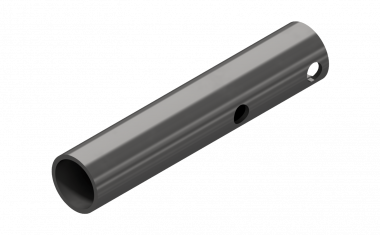

Pipe Ø = 38 mm for drop bracket clamp

E3243

Pipe Ø = 38 mm for drop bracket clamp
Pipe Ø = 38 mm for drop bracket clamp

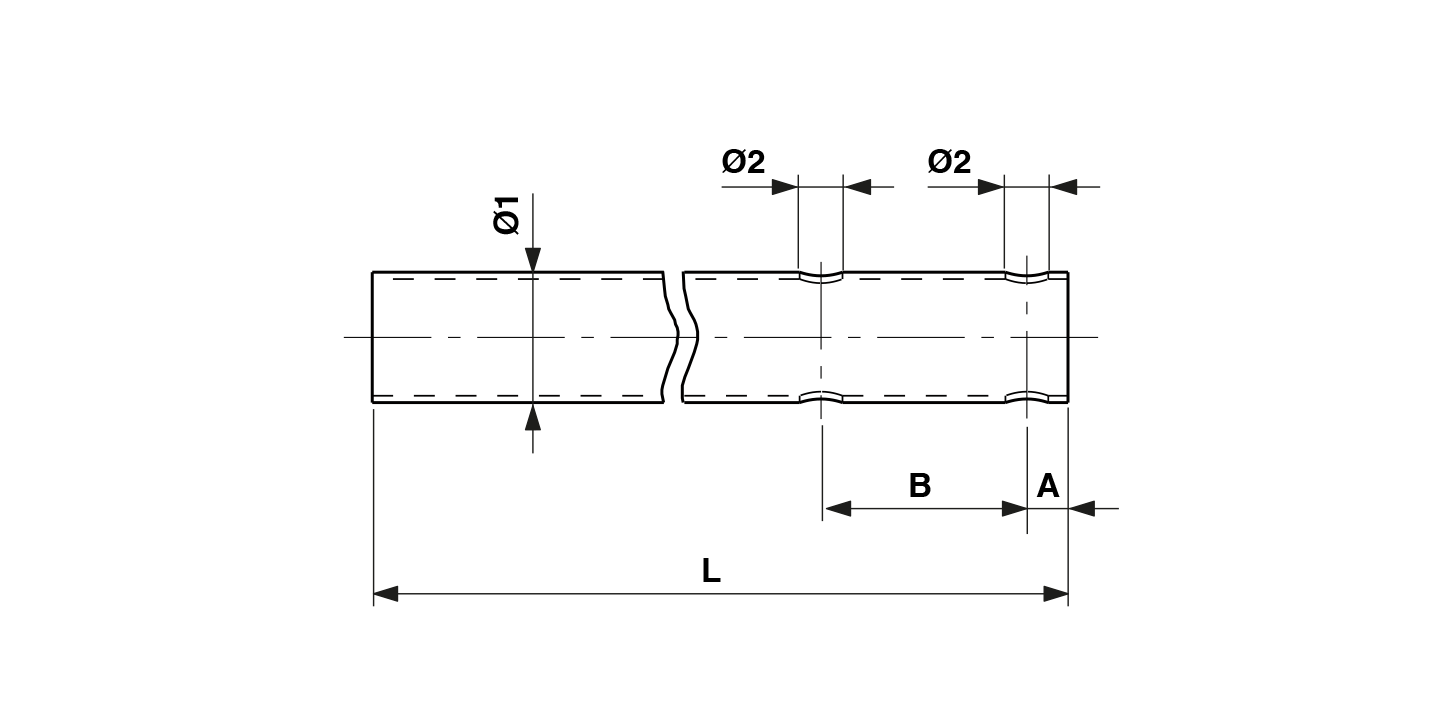

Dimensions

B: 60 mm
A: 12 mm
Ø1: 38 mm
Ø2: 12.5 mm

L=190 mm (E3243-01)
L=335 mm (E3243-02)
L=520 mm (E3243-03)
L=580 mm (E3243-04)
L=740 mm (E3243-05)
L=380 mm (E3243-06)

Material and weight

Weight: 0.440 kg
Material: SST

Loads

Admissible bending moment: 595 Nm

Comments

- Other lengths on request
