Pipe Ø = 38 mm for drop bracket clamp movable ± 15°, L = 230 mm

E3314-05

Pipe Ø = 38 mm for drop bracket clamp movable ± 15°, L = 230 mm
Pipe Ø = 38 mm for drop bracket clamp movable ± 15°, L = 230 mm

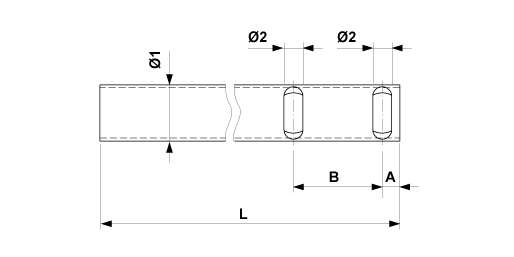

Dimensions

B: 60 mm
A: 12 mm
Ø1: 38 mm
L: 230 mm
Ø2: 12.8 mm

Material and weight

Weight: 0.520 kg
Material: SST

Comments

- Other lengths on request
