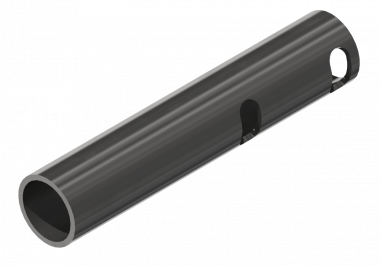

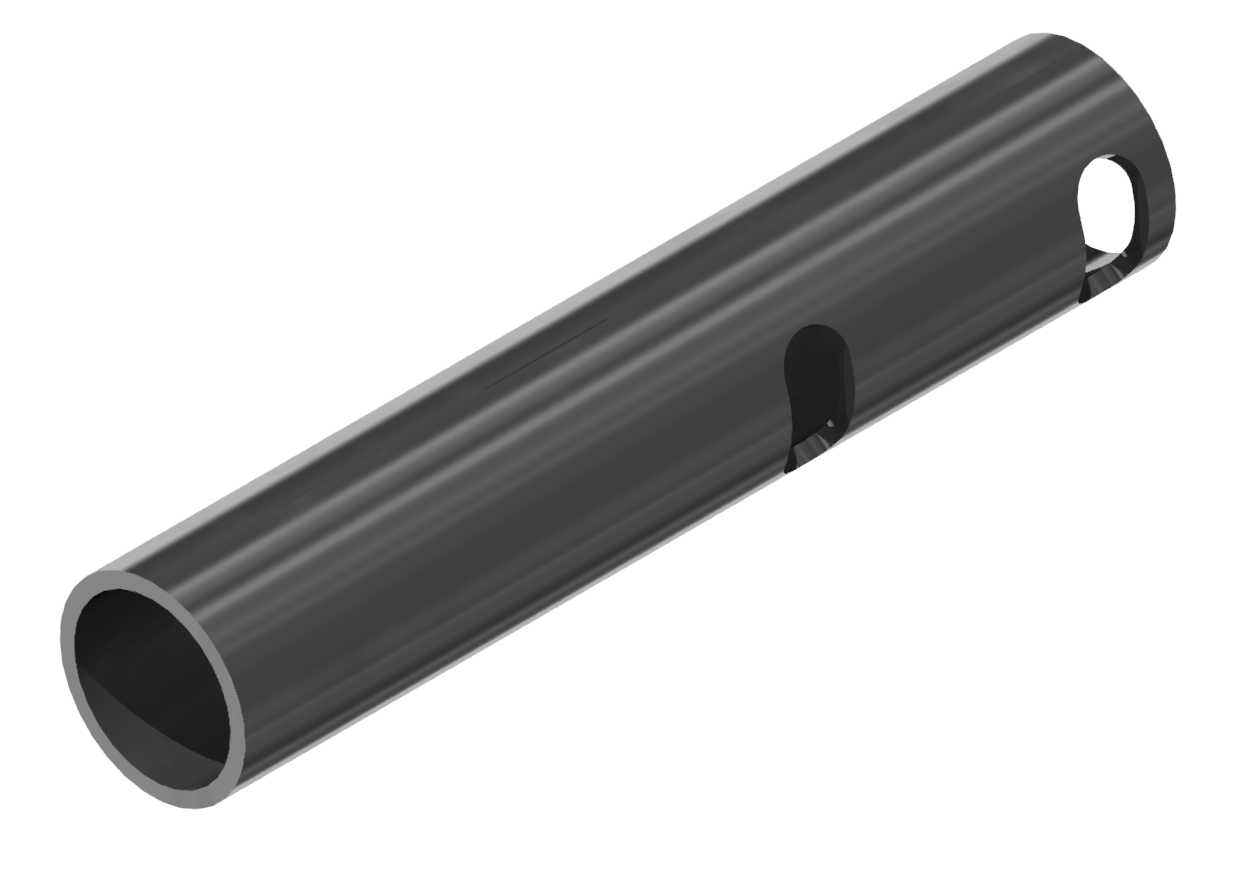

PIPE Ø = 38 MM FOR DROP BRACKET CLAMP MOVABLE ± 15°

E3314

PIPE Ø = 38 MM FOR DROP BRACKET CLAMP MOVABLE ± 15°
PIPE Ø = 38 MM FOR DROP BRACKET CLAMP MOVABLE ± 15°

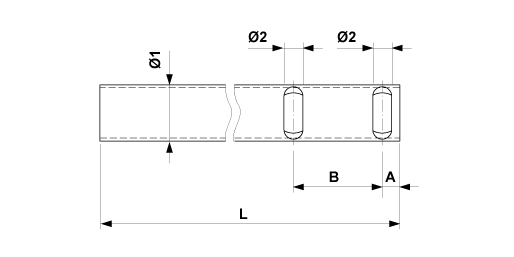

Dimensions

B: 60 mm
A: 12 mm
Ø1: 38 mm
Ø2: 12.8 mm

L=190 mm (E3314-01)
L=335 mm (E3314-02)
L=520 mm (E3314-03)
L=220 mm (E3314-04)
L=230 mm (E3314-05)
L=380 mm (E3314-06)
L=365 mm (E3314-07)
L=290 mm (E3314-08)
L=620 mm (E3314-09)

Material and weight

Weight: 0.430 kg
Material: SST

Comments

- Other lengths on request
