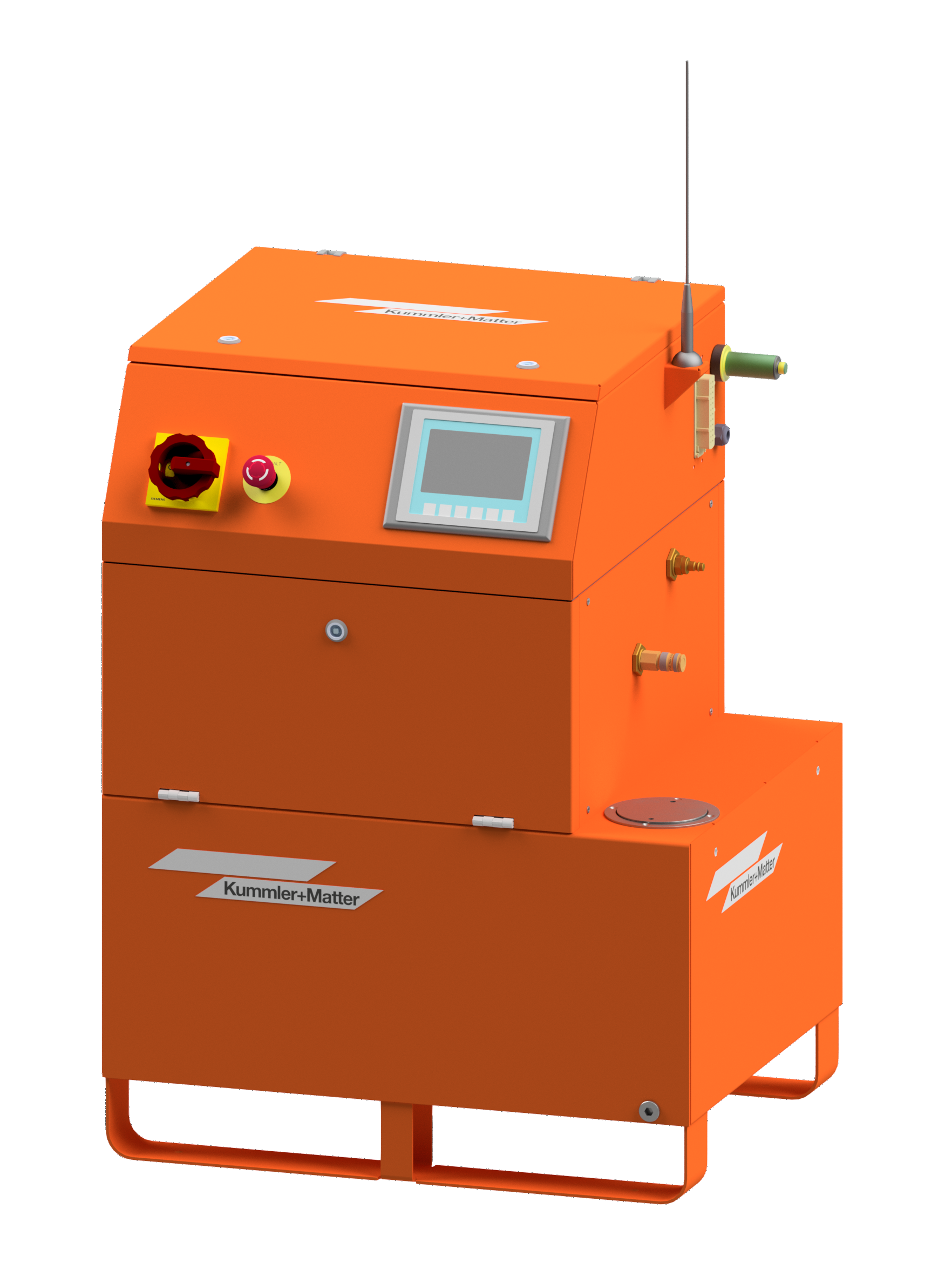

Pump and control unit of KUPRO (CE)

B1572-01

Pump and control unit of KUPRO (CE)

Dimensions

  • Width: 750 mm
  • Depth: 600 mm
  • Height: 1000 mm

Material and weight

  • Weight (empty): 125 kg

Applicable standards

  • Maschinenrichtlinie 2006/42/EG

Function

The pump and control unit of the KUPRO is the heart of the system. It contains an integrated de-icing tank with level sensors, all hydraulic components for the pressure build-up and their control and monitoring as well as the electrical switching of all components.

Specification

  • Tank volumen: ~135 Liter
  • Pressure: max. 10 bar (adjustable to regulate the spray rate)
  • Power supply: mains voltage 230 V AC and/or battery 24 V DC
  • Connections:
    • mains plug
    • earth conneciton
    • electrical connection for spray unit
    • hydraulic connection for spray unit
    • hydraulic connection for external tank
