Trolleybus
Cross-spans
Products
Cable support network
2 wire head-spans

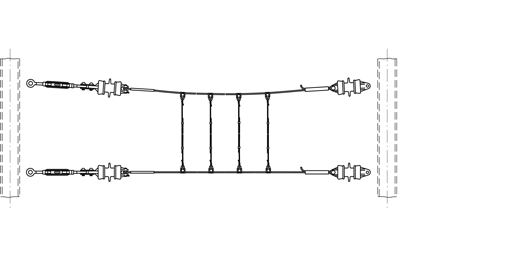

2 wire head-spans, steel-copper cable 35 mm², with 1 shed clevis-tongue insulator
Request for quotation (
0
)
added to cart
Display basket
120359
Loads
Breaking load: 33.95 kN
Comments
- For electricaal characteristics please see: insulators
In the basket
Parts list
1
Turnbuckle open type, M16
D0138-01
Quantity: 2
In the basket
2
Sleeves, 35 mm², Cu
E0493-03
Quantity: 4
In the basket
3
Thimble, 35 mm², Cu
E0492-03
Quantity: 4
In the basket
4
Steel-copper cable, 35 mm² (steel-cooper cable)
300090
Quantity: 9
In the basket
5
Double link with pin
E0115-02
Quantity: 2
In the basket
6
Insulator with clevis fork and eye complete, ceramic, 1 shed
C1820-01
Quantity: 4
In the basket
7
Hanger cable adjustable, conductive, type VSS 22
D1284-08
Quantity: 4
In the basket
Request for quotation (
