Adhesive anchor complete, HVU, M16 x 190, SST
added to cart
Display basket
300907

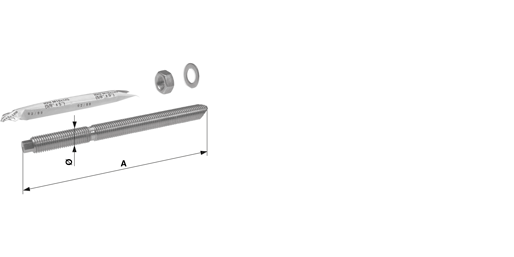

Dimensions
Ø: M16A: 190 mm
Material and weight
Weight: 0.310 kgLoads
Max. perm. load transverse: 24.7 kNMax. perm. load vertical: 21.9 kN
Comments
- Type of adhesive anchor with expanding-free anchoring in case of small edge distances- Application for standard concrete
- Is composed of composite fail adhesive capsule and anchor rod
- Nominal diameter of the drill: 18 mm - All adhesive anchor bolts must be mounted with rotary percussion
- Please pay attention to the special regulations of the technical data sheet when mounting
- Please order the mounting tools separately
Conditions:
- All values are valid only with good quality of the concrete and if the installation procedures are followed carefully
