Adhesive anchor complete, HVU, M12 x 160, SST

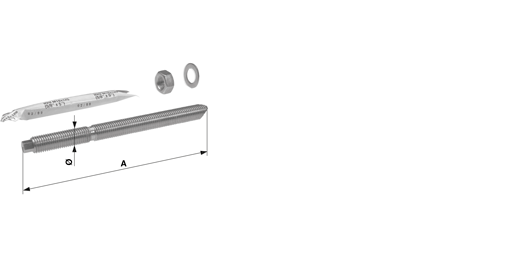

Dimensions

A: 160 mm
Ø: M12

Loads

Max. perm. load transverse: 13.1 kN
Max. perm. load vertical: 15.0 kN

Comments

- Type of adhesive anchor with expanding-free anchoring in case of small edge distances
- Application for standard concrete
- Is composed of composite fail adhesive capsule and anchor rod
- Nominal diameter of the drill: 14 mm
- All adhesive anchor bolts must be mounted with rotary percussion
- Please pay attention to the special regulations of the technical data sheet when mounting
- Please order the mounting tools separately
Conditions:
- All values are valid only with good quality of the concrete and if the installation procedures are followed carefully
