Switch U99 mechanical, 10° asymmetric left / right for grooved contact wire 100-107 mm²

800063

Switch U99 mechanical, 10° asymmetric left / right for grooved contact wire 100-107 mm²

Comments

- Installation asymmetrical left or right
- Positon of runners adjustable

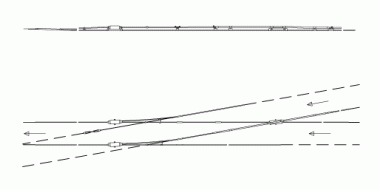

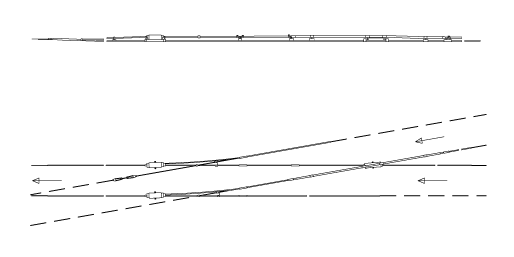

- The insulation can be installed in any desired direction of travelling. In the installation shown above the run-in is from the right
- Crossing pieces 10° mechanical (in all installations)
- Auxiliary material included
- Without fixed terminations for grooved contact wire, supporting network and suspension
- Switches for additional grooved contact wires on request
- Detailed installation plans can be requested for each delivery of this assembly
