Switch U88 electronic, 10° symmetric 24 V DC for grooved contact wire 100-107 mm², fixed termination left

800095

Switch U88 electronic, 10° symmetric 24 V DC for grooved contact wire 100-107 mm², fixed termination left

Specifications

Crossing piece: 10° electronic right
Specific characteristics: Fixed termination left

Comments

- The insulation can be installed in any desired direction of travelling
- With the respective control, this installation can also be installed as a trailing switch (left hand execution for run-in from the right)
- The switch direction is determined by the control
- Auxiliary material included
- Without control and cabling
- Without fixed terminations for grooved contact wire, supporting network and suspension
- Switches for additional grooved contact wires on request

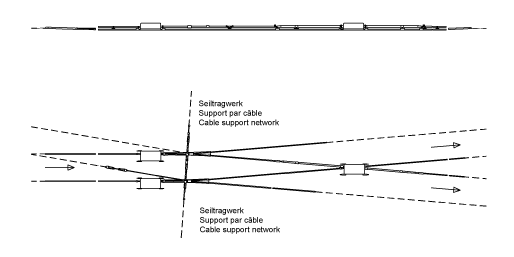

- Detailed installation plans can be requested for each delivery of this assembly
