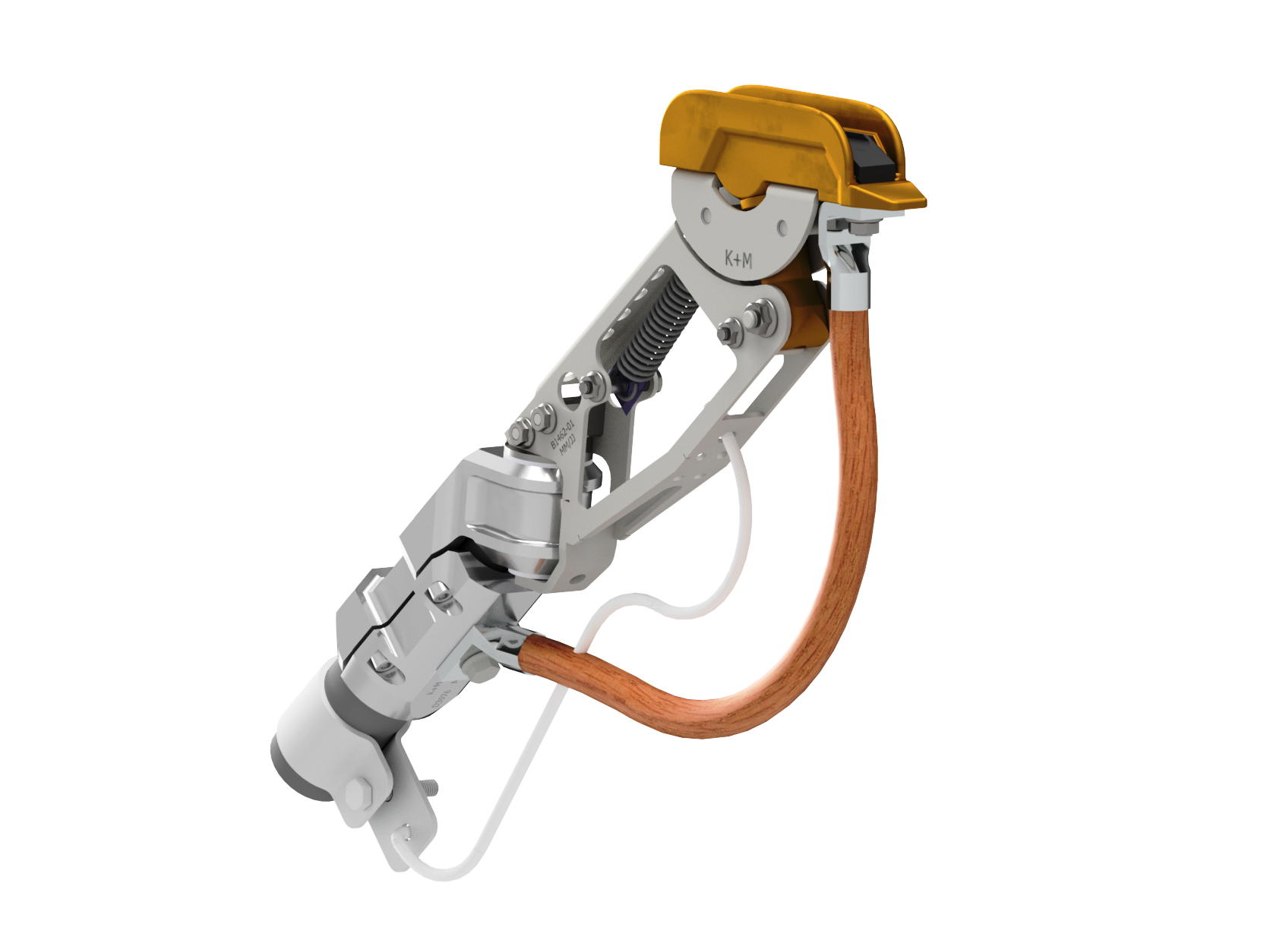

Double articulated current collector HC 38

B1592-02

Double articulated current collector HC 38

Dimensions

Length: 401 mm
Width: 50 mm
Height: 209 mm

Material and weight

Weight: 3.3 kg

Applicable standards

DIN CLC/TS: 50502
VDE : 0115-502:2009-08

Specification

Max. continuous current unlimited: 400 A
Max. continuous current limited: 600 A for 10 minutes
Max. permissible operating temperature: <100°C
Maximum deflection of the sliding shoe: +/- 180°;
Release force for foldaway and locking mechanism: approx. 500 N
Max. contact pressure: 120 N
Jumper: 70mm²

Comments

- We recommend the installation on bended trolley poles
- The compatibility with the overhead contact system in combination with the respective vehicles has to be checked by the user
- Current collectors are delivered without carbon insert
