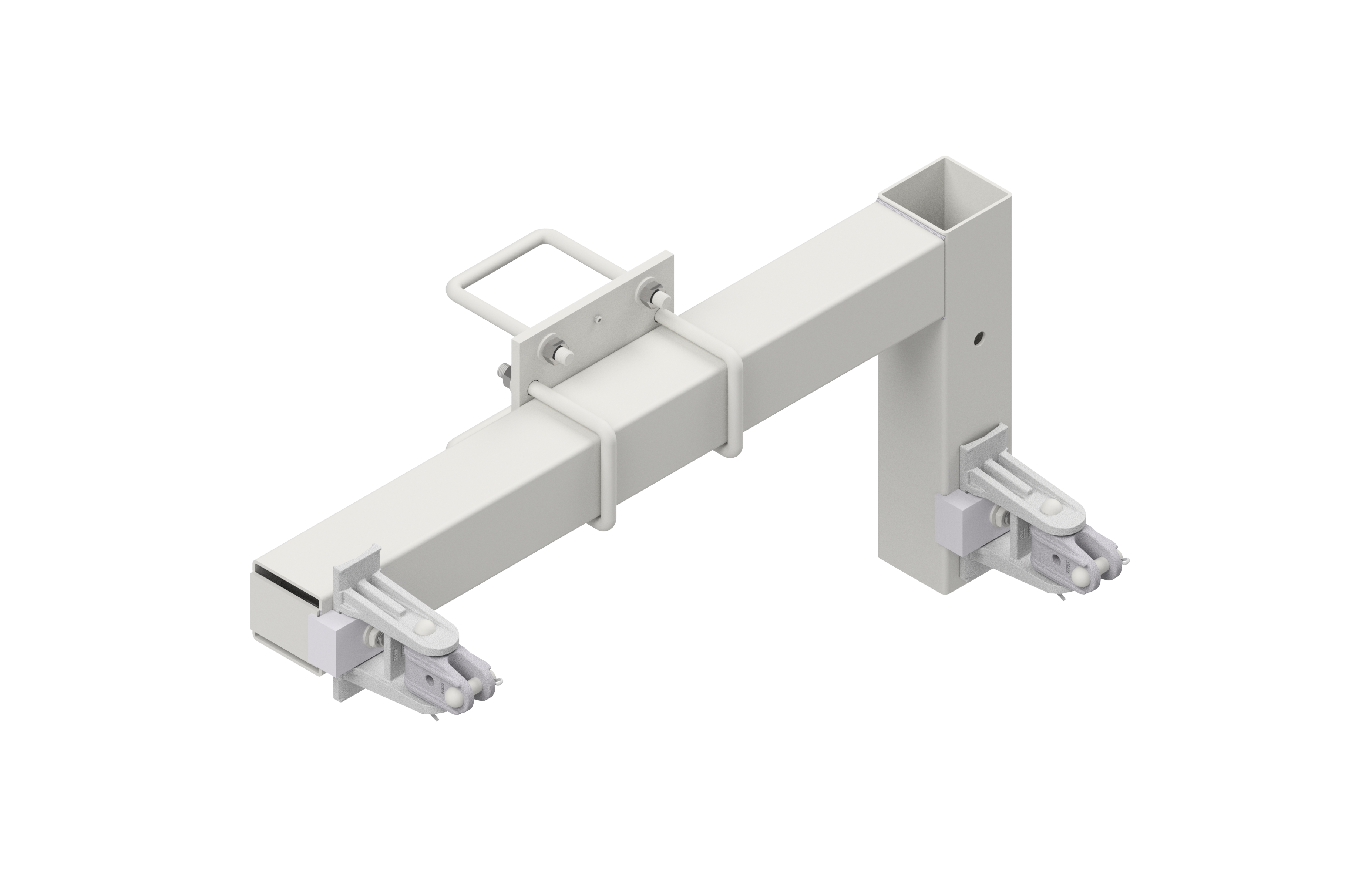

Bracket inclined complete, for suspender, for tension section, with hinge and clevis, L = 900 mm

C2624-01

Bracket inclined complete, for suspender, for tension section, with hinge and clevis, L = 900 mm
Bracket inclined complete, for suspender, for tension section, with hinge and clevis, L = 900 mm

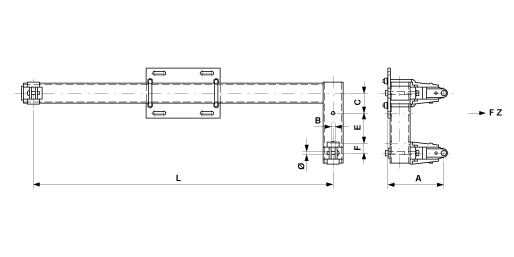

Dimensions

L: 900 mm
Ø: 16 mm
A: 280 mm
B: 20 mm
C: 100 mm
E: 150 mm
F: 50 mm

Material and weight

Weight: 27.500 kg
Material: STL HDG/AI

Loads

Breaking load F on traction: 38 kN

Comments

- Attachment to suspender poles
- U-bolts Ø= 16 mm, part no. D2476-02 (2 pcs.)(to be ordered separately)
