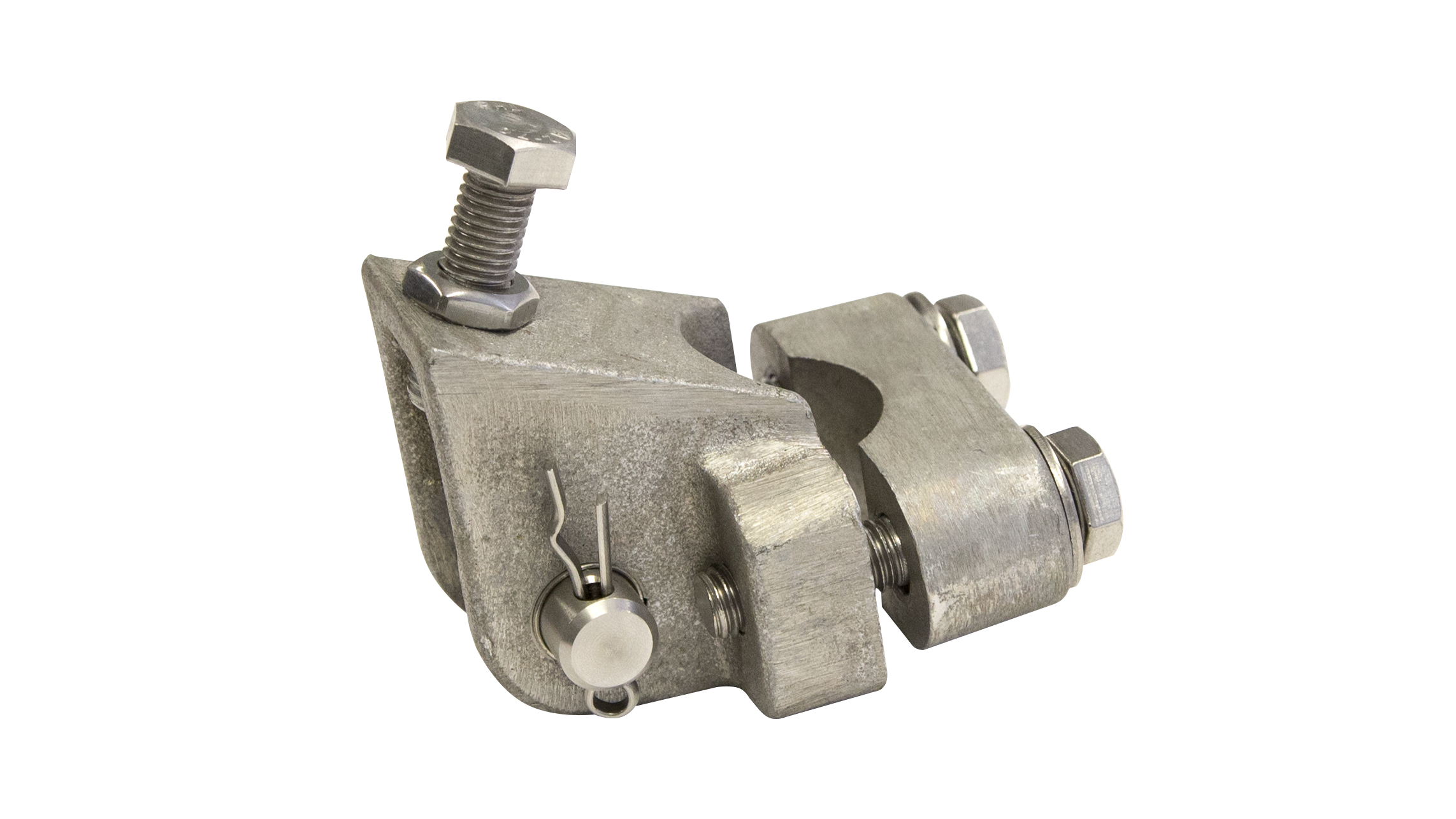

Pipe attachment simple with lift limiter, complete, to pipe Ø = 38 mm, for 1 steady arm

D2705-01

Pipe attachment simple with lift limiter, complete, to pipe Ø = 38 mm, for 1 steady arm
Pipe attachment simple with lift limiter, complete, to pipe Ø = 38 mm, for 1 steady arm

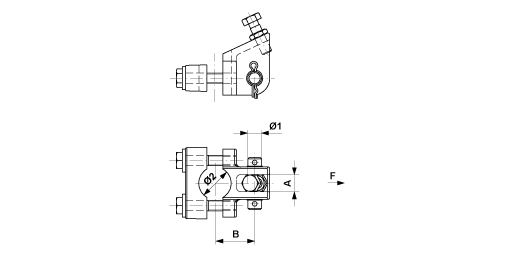

Dimensions

Ø2: 38 mm
A: 20 mm
Ø1: 16 mm
B: 48 mm

Material and weight

Weight: 0.675 kg
Material: Al/SST

Loads

Breaking load F: 30 kN
