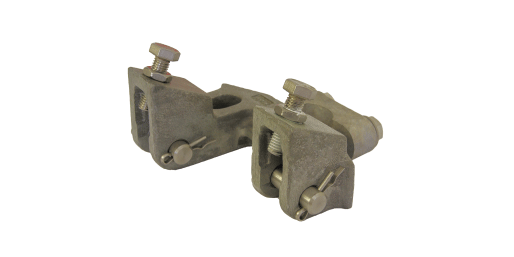

Pipe attachment double with lift limiter, complete, to pipe Ø = 38 mm, for 2 steady arms

D2708-01

Pipe attachment double with lift limiter, complete, to pipe Ø = 38 mm, for 2 steady arms
Pipe attachment double with lift limiter, complete, to pipe Ø = 38 mm, for 2 steady arms

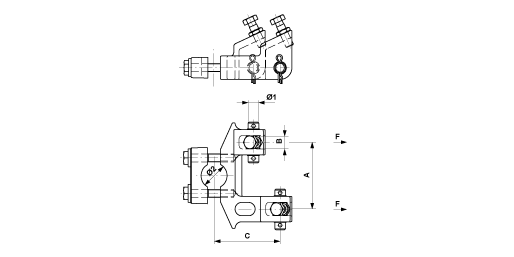

Dimensions

A: 100 mm
C: 98.5 mm
E: 40 mm
B: 20 mm
Ø2: 38 mm
Ø1: 16 mm

Material and weight

Material: Al/SST
Weight: 1.285 kg

Loads

Breaking load F: 15 kN per attachment
