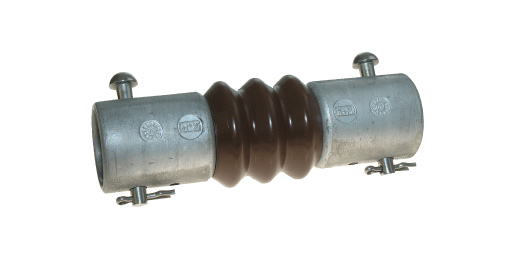

In-between insulator with pipe adapter complete, composite, to pipe G2.5"

D3042-01

In-between insulator with pipe adapter complete, composite, to pipe G2.5"
In-between insulator with pipe adapter complete, composite, to pipe G2.5"

Dimensions

A: 190 mm
B: 240 mm
Ø3: 12 mm
Ø1: 80 mm
Ø2: 66.8 mm

Material and weight

Weight: 1.750 kg

Loads

Breaking load: 30 kN

Specification

Operating voltage: max. 3.000 kV
Minimum creeping distance: 92 mm for insulator

Comments

- Connection parts in Al
- Pin and cotter pin SST
- Other pipe connector Ø on request
