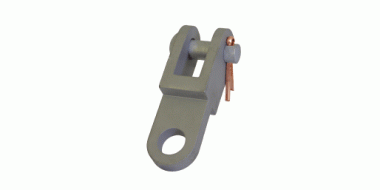

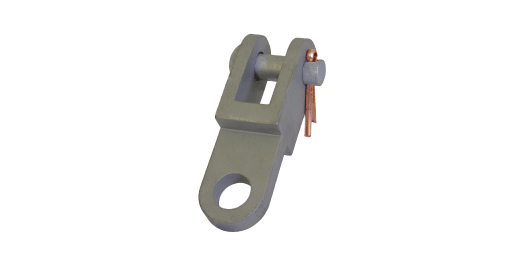

Clevis tongue with pins

E0112-01

Clevis tongue with pins
Clevis tongue with pins

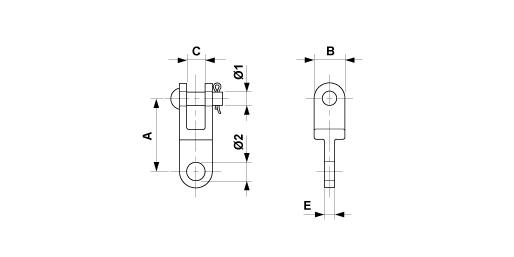

Dimensions

B: 30 mm
C: 18 mm
E: 10 mm
A: 71 mm
Ø2: 18 mm
Ø1: 13 mm

Material and weight

Weight: 0.340 kg
Material: STL HDG

Loads

Breaking load: 50 kN
