Insulator with clevis eye and tongue complete, composite, Ø = 80 mm

E3301-01

Insulator with clevis eye and tongue complete, composite, Ø = 80 mm

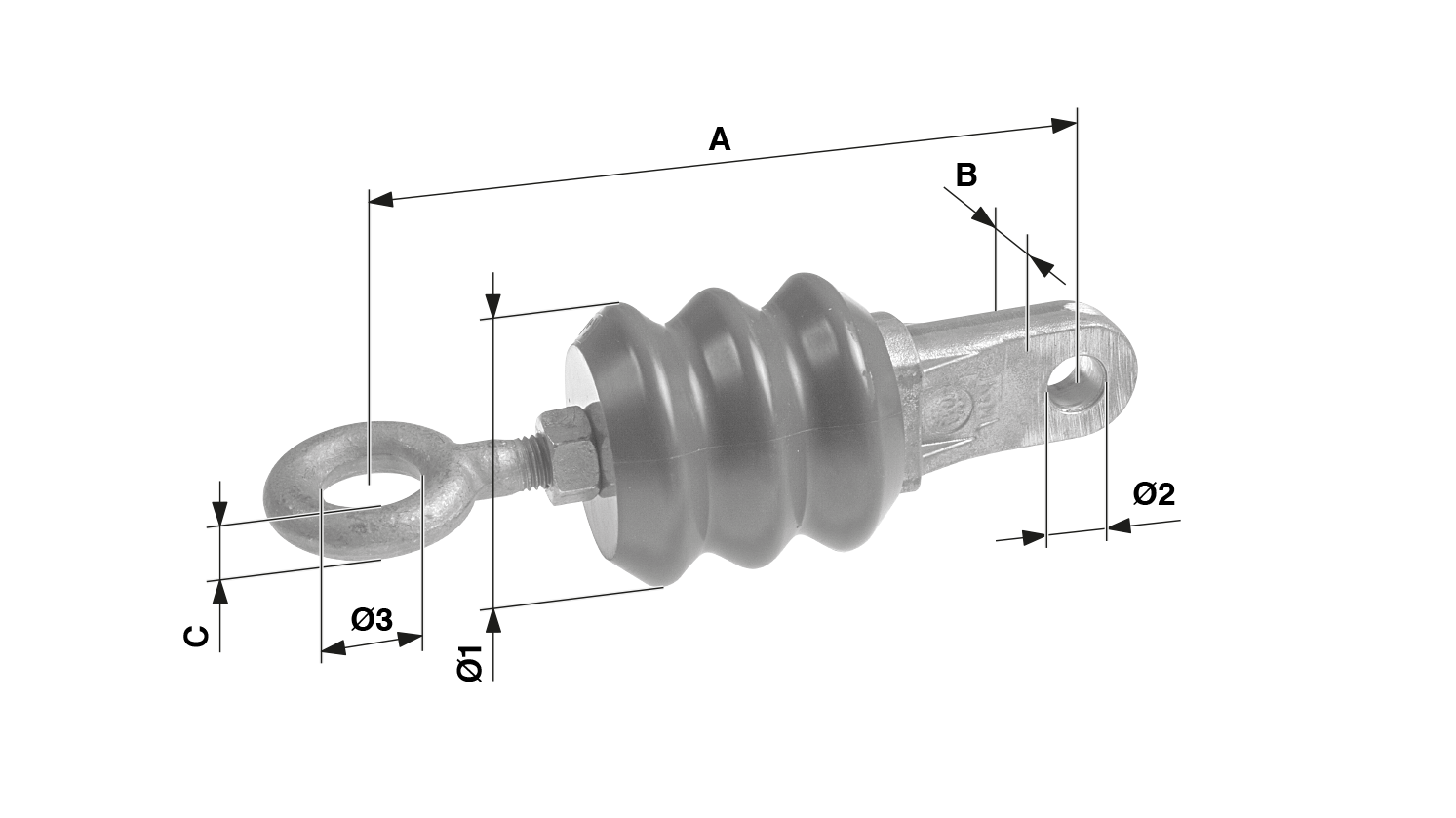

Dimensions

A: 200 mm
B: 18 mm
Ø2: 17 mm
Ø1: 80 mm
C: 14.5 mm
Ø3: 27 mm

Material and weight

Weight: 1.140 kg

Loads

Breaking load: 30 kN

Specification

Operating voltage: max. 3.000 kV
Minimum creeping distance: 120 mm

Comments

- Connection parts in Al/STL HDG
