Switch cabinets, with 2 knifes blades, 4 exits

Switch cabinets, with 2 knifes blades, 4 exits

Comments

- Attachment to round pole
- Clamp for round pole, part no. C1139-... (to be ordered separately)

Parts list
Documents

1

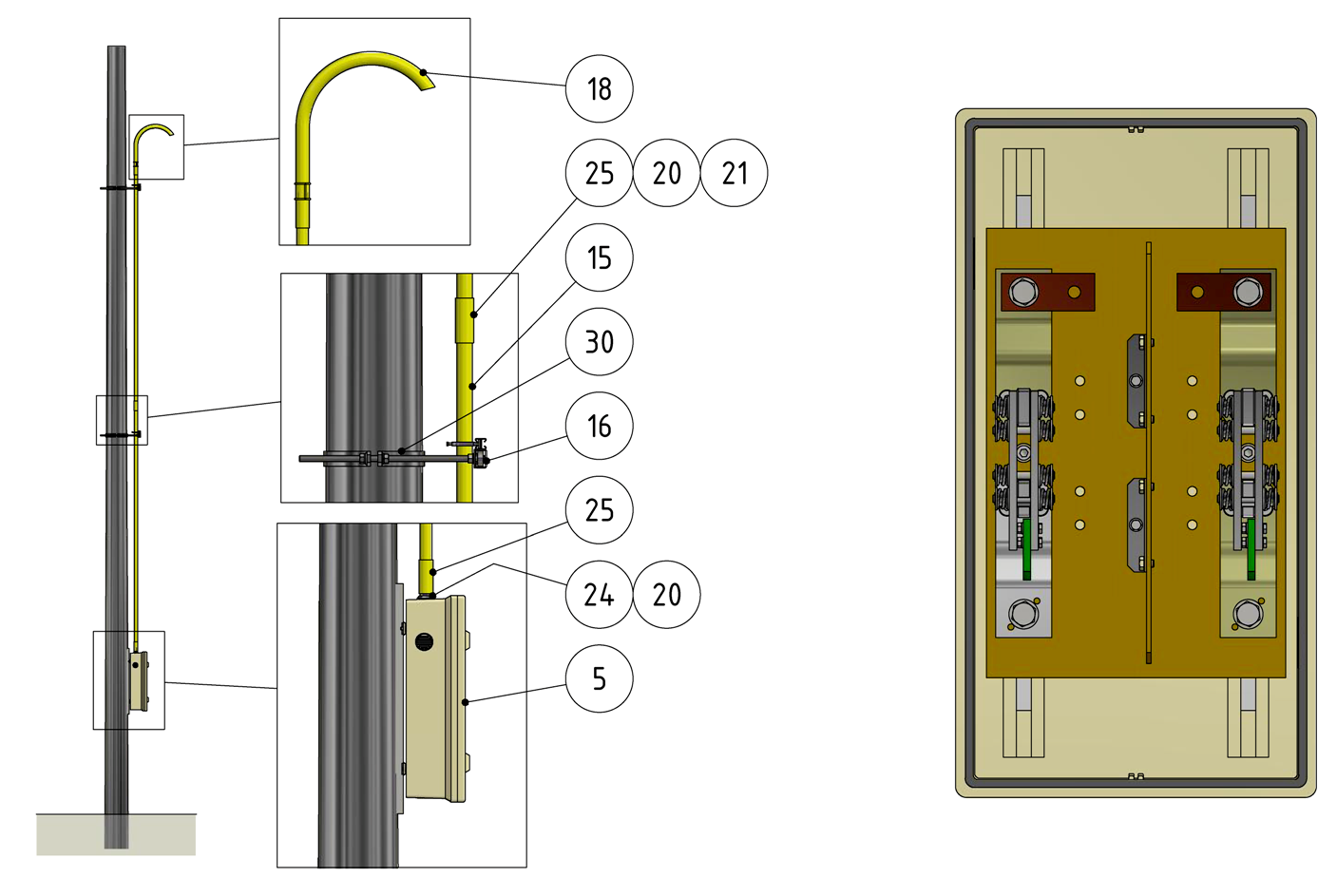

Knife-blade disconnect switches with 2 knife-blades for bridging + and - (with 4 exits)

B1514-02

Quantity: 1

2

Conduit, Ø = 42.5/38 x 3000 mm, for switch cabinets

300498

Quantity: 8

3

Guide for operating rod, for conduit, to round poles Ø = 200–280 mm

C1285-01

Quantity: 1

4

Guide for operating rod, for conduit, to round poles Ø = 285–410 mm

C1285-02

Quantity: 1

5

Curve bow complete for switch cabinets

C1286-01

Quantity: 4

6

2X15Ml Adhesive Resin Aw106, Hardener Hv953U

300821

Quantity: 1

7

Molykote-Silicone grease

300823

Quantity: 1

8

Connection piece complete, Ø = 38/42 x 80 mm, for knife-blade disconnect switches at top

E2560-01

Quantity: 4

9

Coupler of conduit, Ø = 42.5/43/48 x 120 mm, for switch cabinets

300586

Quantity: 8

10

Hexagon head bolt A4 M12x 60 fully threaded DIN 933

351001

Quantity: 2

11

Washer A2 M12 (13,0/24x2,5)DIN 125

352336

Quantity: 2

12

Spring lock washer A2 M12 DIN 128A

350494

Quantity: 2
