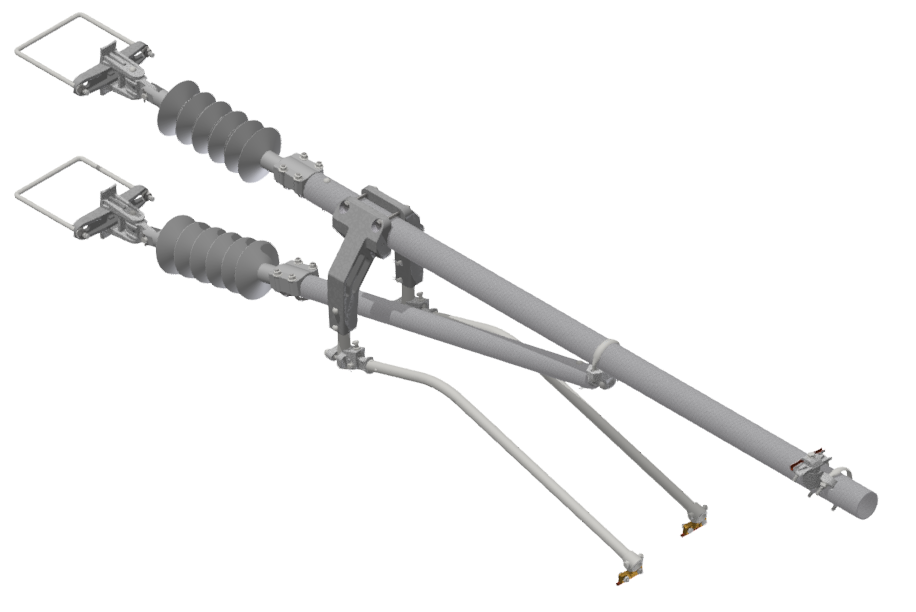

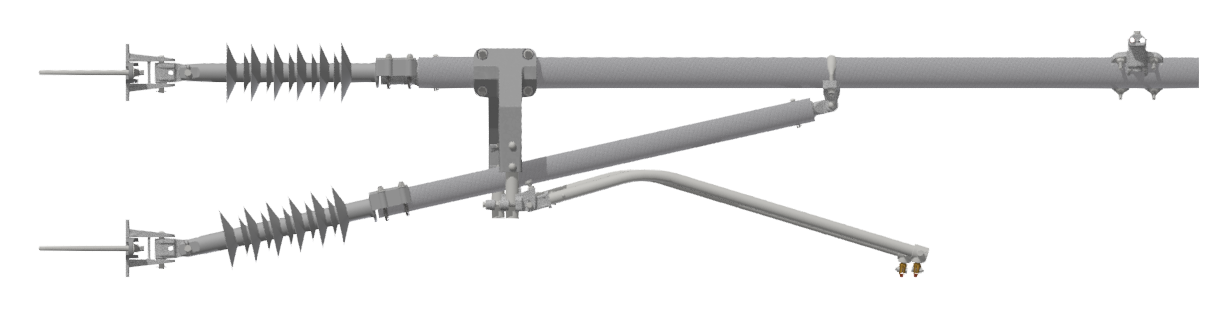

Railway Cantilever Systems fully compensated AC B4 B4-005

SPC00121-005-(052/053)

Request for quotation (0)

added to cart Display basket

102556

SPC00121-005-(052/053)

SPC00121-005-(052/053)

SPC00121-005-(052/053)

Parts list
Documents

1

Hinge with tongue vertical, complete, to round pole

D2563-01

Quantity: 2

Unit: pcs

2

Insulator 25 kV

SPC00075-007

Quantity: 2

Unit: pcs

3

Adapter for pipe to aluminum pipe D = 90/5 mm

E3311-01

Quantity: 1

Unit: pcs

4

Pipe attachment complete, with U-bolt, to pipe Ø = 90 mm

D2336-04

Quantity: 1

Unit: pcs

5

Messenger cable suspension non insulated, rotatable, reinforced, to pipe D = 90 mm, cable Ø max. 13 mm

D2566-04

Quantity: 1

Unit: pcs

6

Protection sleeve AlCu for messenger cable non insulated for cable 70 mm² (7 single wires)

301309

Quantity: 1

Unit: pcs

7

Pipe connector with tongue, complete, to pipe Ø = 70/10 mm

D2571-01

Quantity: 1

Unit: pcs

9

Pipe Ø = 38 mm for drop bracket clamp movable ± 15°, L = 220 mm

E3314-04

Quantity: 2

Unit: pcs

10

Pipe attachment simple with lift limiter, complete, to pipe Ø = 38 mm, for 1 steady arm

D2705-01

Quantity: 2

Unit: pcs

11

Drop bracket

C1937-01

Quantity: 1

Unit: pcs

12

Steady arm G1" curved with eye and plain bearing, rigid, L = 1100 mm, with thread M16, SST

D2647-01

Quantity: 2

Unit: pcs

13

Contact wire clamp complete, with thread M16

E3183-01

Quantity: 2

Unit: pcs

14

Pipe, D=90/5, L=2222

D2658-07

Quantity: 1

Unit: pcs

15

Pipe, D=70/10, L=1272

D2660-15

Quantity: 1

Unit: pcs

500936_nl.pdf
PDF (273 KB )
