Railway
Cantilever
Systems
fully compensated AC
B4
B4-001

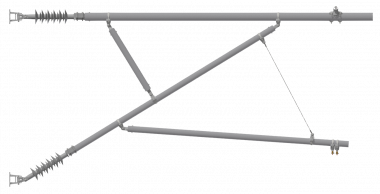

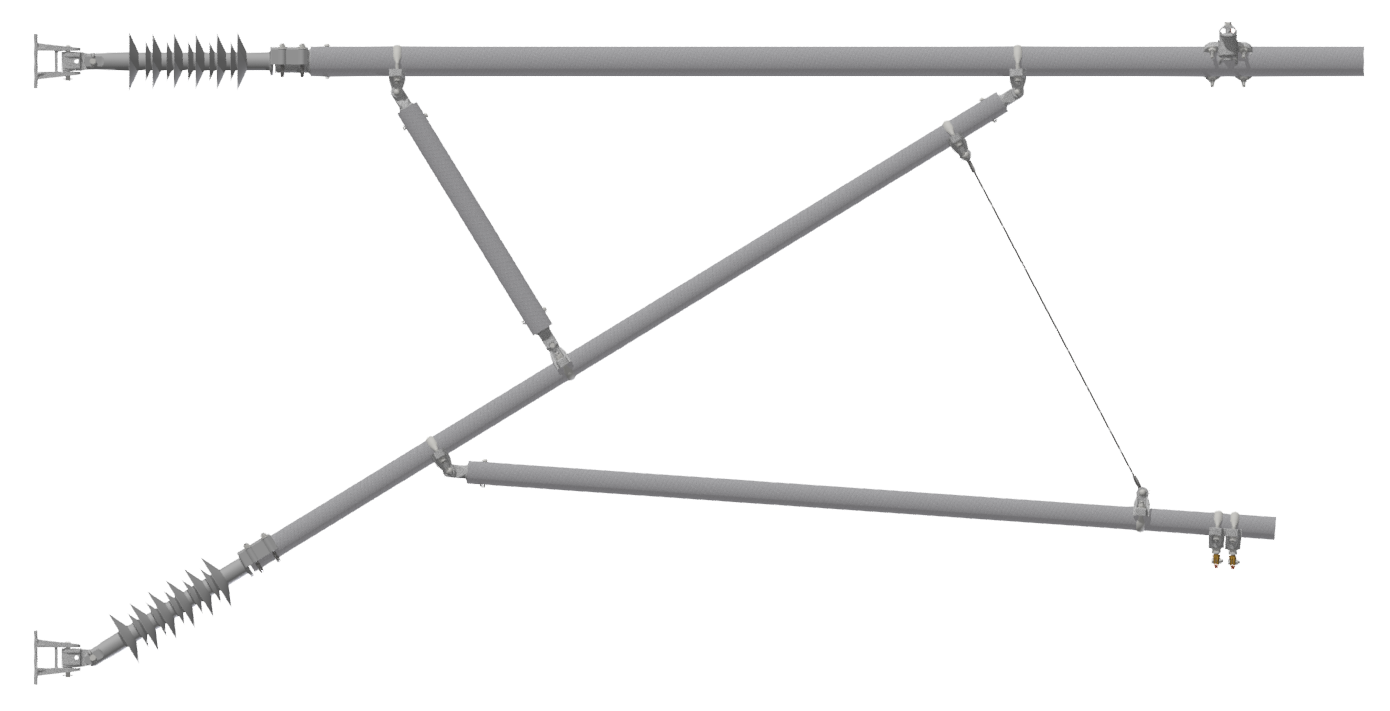

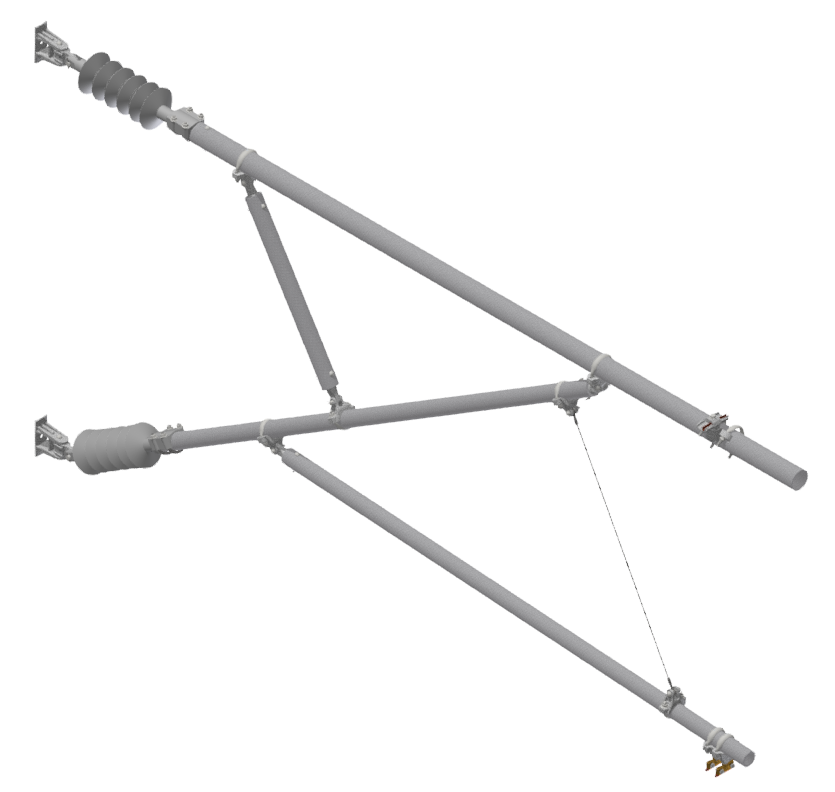

SPC00121-001/2500/1150/1212-055
Request for quotation (
0
)
added to cart
Display basket
120216
In the basket
Parts list
Accessories
Documents
2
Insulator 25 kV
SPC00075-007
Quantity: 2
Unit: pcs
In the basket
3
Adapter for pipe to aluminum pipe D = 90/5 mm
E3311-01
Quantity: 1
Unit: pcs
In the basket
4
Pipe attachment complete, with U-bolt, to pipe Ø = 90 mm
D2336-04
Quantity: 2
Unit: pcs
In the basket
5
Messenger cable suspension non insulated, rotatable, reinforced, to pipe D = 90 mm, cable Ø max. 13 mm
D2566-04
Quantity: 1
Unit: pcs
In the basket
6
Protection sleeve AlCu for messenger cable non insulated for cable 70 mm² (7 single wires)
301309
Quantity: 1
Unit: pcs
In the basket
7
Pipe attachment complete, with U-bolt, to pipe Ø = 70 mm
D2336-03
Quantity: 4
Unit: pcs
In the basket
8
Pipe connector with tongue, complete, to pipe Ø = 70/10 mm
D2571-01
Quantity: 4
Unit: pcs
In the basket
9
Contact wire suspension, rigid, 4°, ø70 mm
D2664-03
Quantity: 1
Unit: pcs
In the basket
10
Pipe, D=90/5, L=3180
D2658-15
Quantity: 1
Unit: pcs
In the basket
11
Pipe, D=70/10, L=2666
D2660-18
Quantity: 1
Unit: pcs
In the basket
12
Pipe, D=70/10, L=2445
D2659-28
Quantity: 1
Unit: pcs
In the basket
13
Cable, D=6mm, L=1150, inox
D2714-21
Quantity: 1
Unit: pcs
In the basket
14
Pipe, D=70/10, L=787
D2660-19
Quantity: 1
Unit: pcs
In the basket
Bracket 180-240
C1853-01
In the basket
Traverse 100-160 mit Bol M8 Drehgelenk kompl Univers
D2668-01
In the basket
U-bolts, Ø = 16 mm to HEB 140
D2476-03
In the basket
Beam clamp for wide flange pole
C1873-01
In the basket
501134_nl.pdf
PDF (363 KB )
