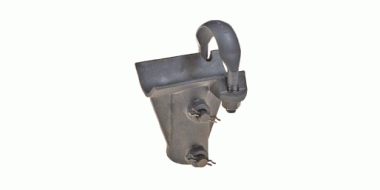

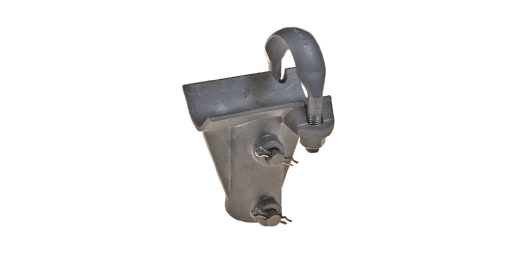

Drop bracket clamp for pipe, complete, to pipe 2"

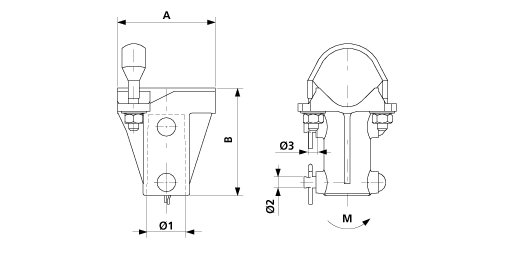

Dimensions

A: 105 mm
B: 116 mm
Ø1: 39 mm
Ø2: 12 mm
Ø3: M12

Material and weight

Weight: 0.860 kg
Material: Al/SST

Loads

Failing bending moment M: to pipe 2250 Nm

Comments

- Flat U-bolt M12 SST
- Pin and cotter pin SST
- Drop bracket clamps with flat U-bolt, side mounted to pipe, complete and other pipe diameter on request
