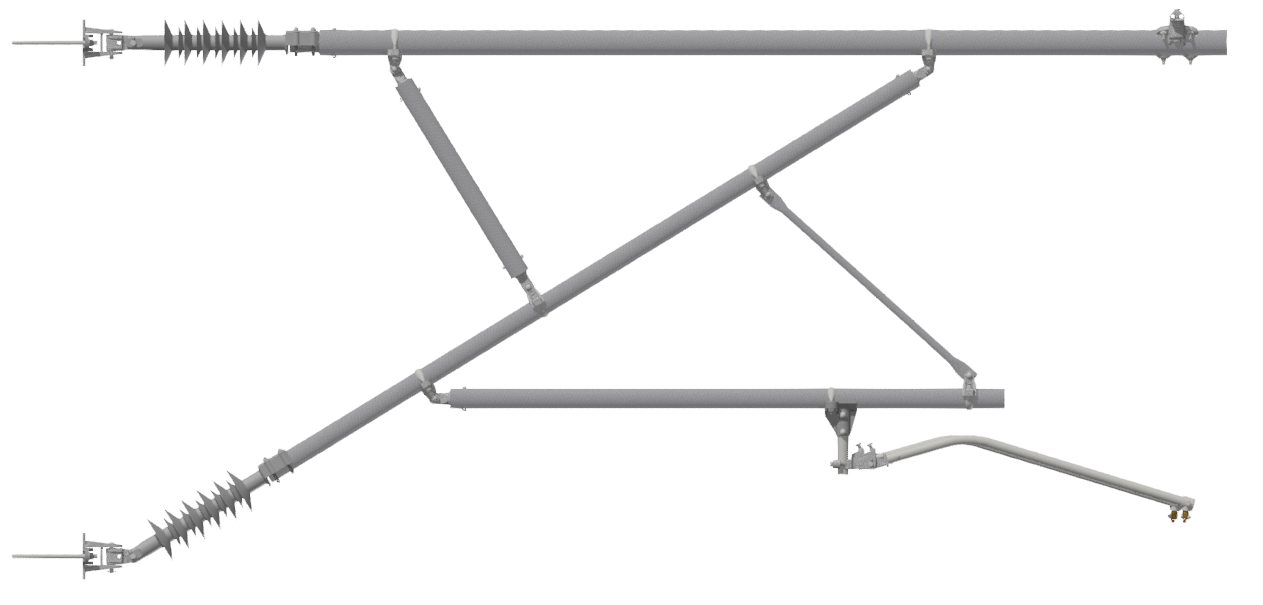

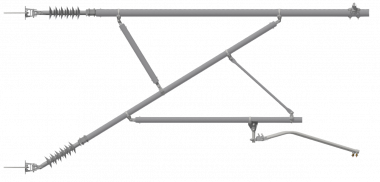

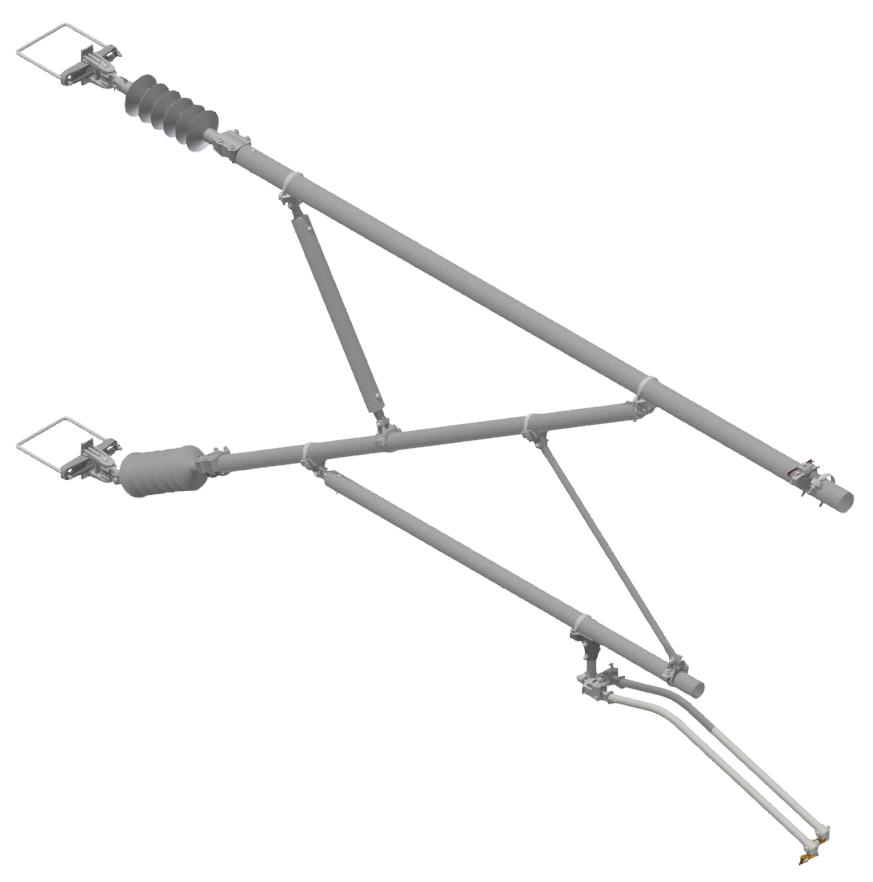

SPC00121-001/2000/950/1189/-(034/035)

102514

SPC00121-001/2000/950/1189/-(034/035)
SPC00121-001/2000/950/1189/-(034/035)
SPC00121-001/2000/950/1189/-(034/035)

1

Hinge with tongue vertical, complete, to round pole

D2563-01

Quantity: 2

Unit: pcs

2

Insulator 25 kV

SPC00075-007

Quantity: 2

Unit: pcs

3

Adapter for pipe to aluminum pipe D = 90/5 mm

E3311-01

Quantity: 1

Unit: pcs

4

Pipe attachment complete, with U-bolt, to pipe Ø = 90 mm

D2336-04

Quantity: 2

Unit: pcs

5

Messenger cable suspension non insulated, rotatable, reinforced, to pipe D = 90 mm, cable Ø max. 13 mm

D2566-04

Quantity: 1

Unit: pcs

6

Protection sleeve AlCu for messenger cable non insulated for cable 70 mm² (7 single wires)

301309

Quantity: 1

Unit: pcs

7

Pipe attachment complete, with U-bolt, to pipe Ø = 70 mm

D2336-03

Quantity: 4

Unit: pcs

8

Pipe connector with tongue, complete, to pipe Ø = 70/10 mm

D2571-01

Quantity: 4

Unit: pcs

9

Drop bracket clamp for pipe, complete, movable, reinforced, to pipe Ø = 70 mm

D2579-03

Quantity: 1

Unit: pcs

10

Pipe Ø = 38 mm for drop bracket clamp movable ± 15°, L = 220 mm

E3314-04

Quantity: 1

Unit: pcs

12

Pipe attachment double with lift limiter, complete, to pipe Ø = 38 mm, for 2 steady arms

D2708-01

Quantity: 1

Unit: pcs

13

Steady arm G1" curved with eye and plain bearing, rigid, L = 1100 mm, with thread M16, SST

D2647-01

Quantity: 2

Unit: pcs

14

Contact wire clamp complete, with thread M16

E3183-01

Quantity: 2

Unit: pcs

15

Pipe, D=90/5, L=3180

D2658-15

Quantity: 1

Unit: pcs

16

Pipe, D=70/10, L=2666

D2660-18

Quantity: 1

Unit: pcs

17

Pipe, D=70/10, L=1945

D2659-03

Quantity: 1

Unit: pcs

18

Support pipe Ø30/3

D2661-17

Quantity: 1

Unit: pcs

19

Pipe, D=70/10, L=787

D2660-19

Quantity: 1

Unit: pcs
