Railway
Cantilever
Systems
fully compensated AC
B4
B4-003

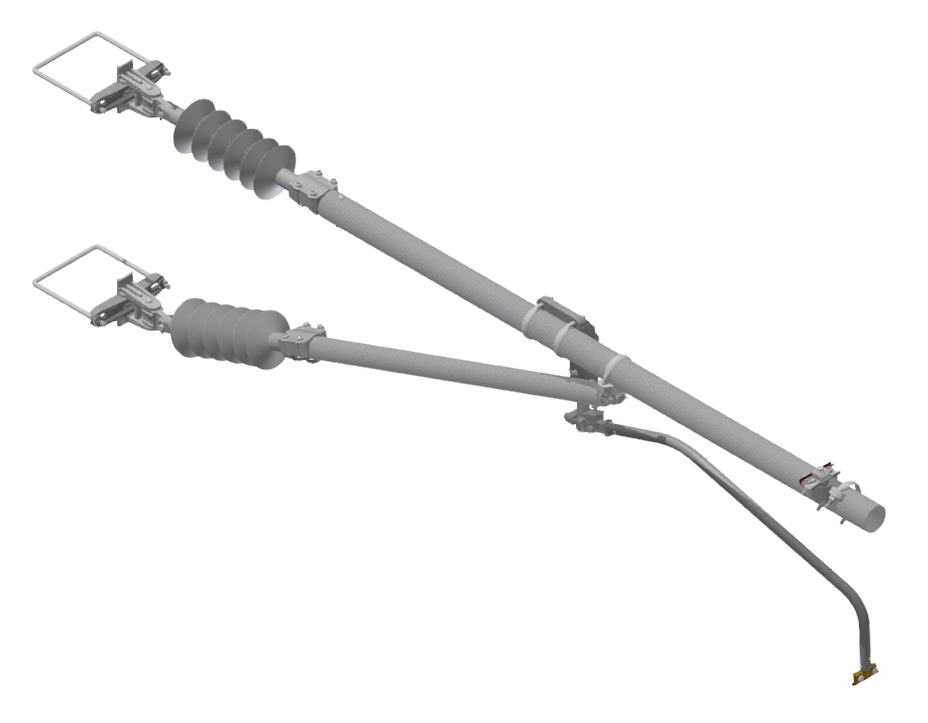

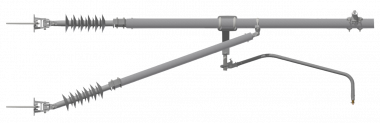

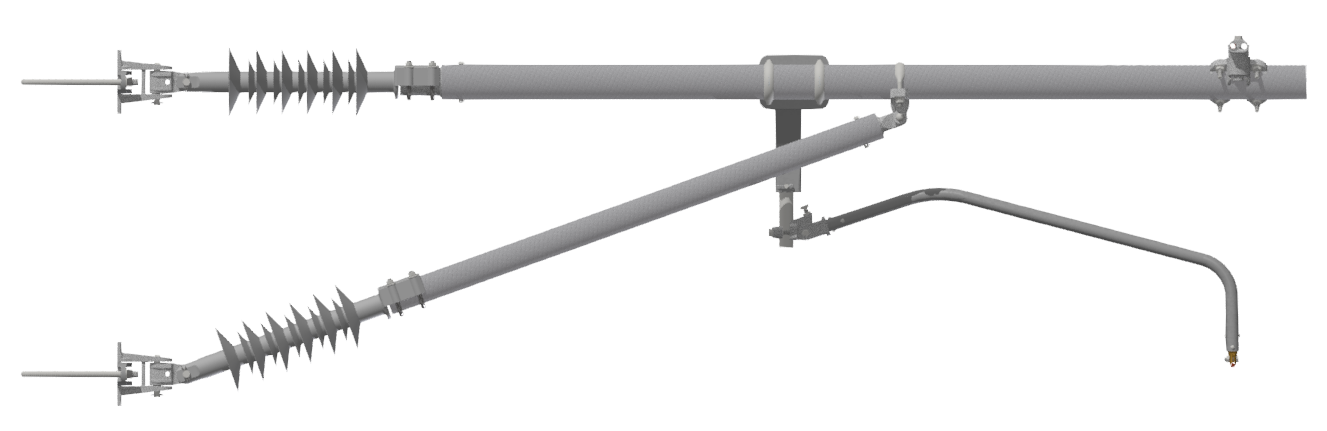

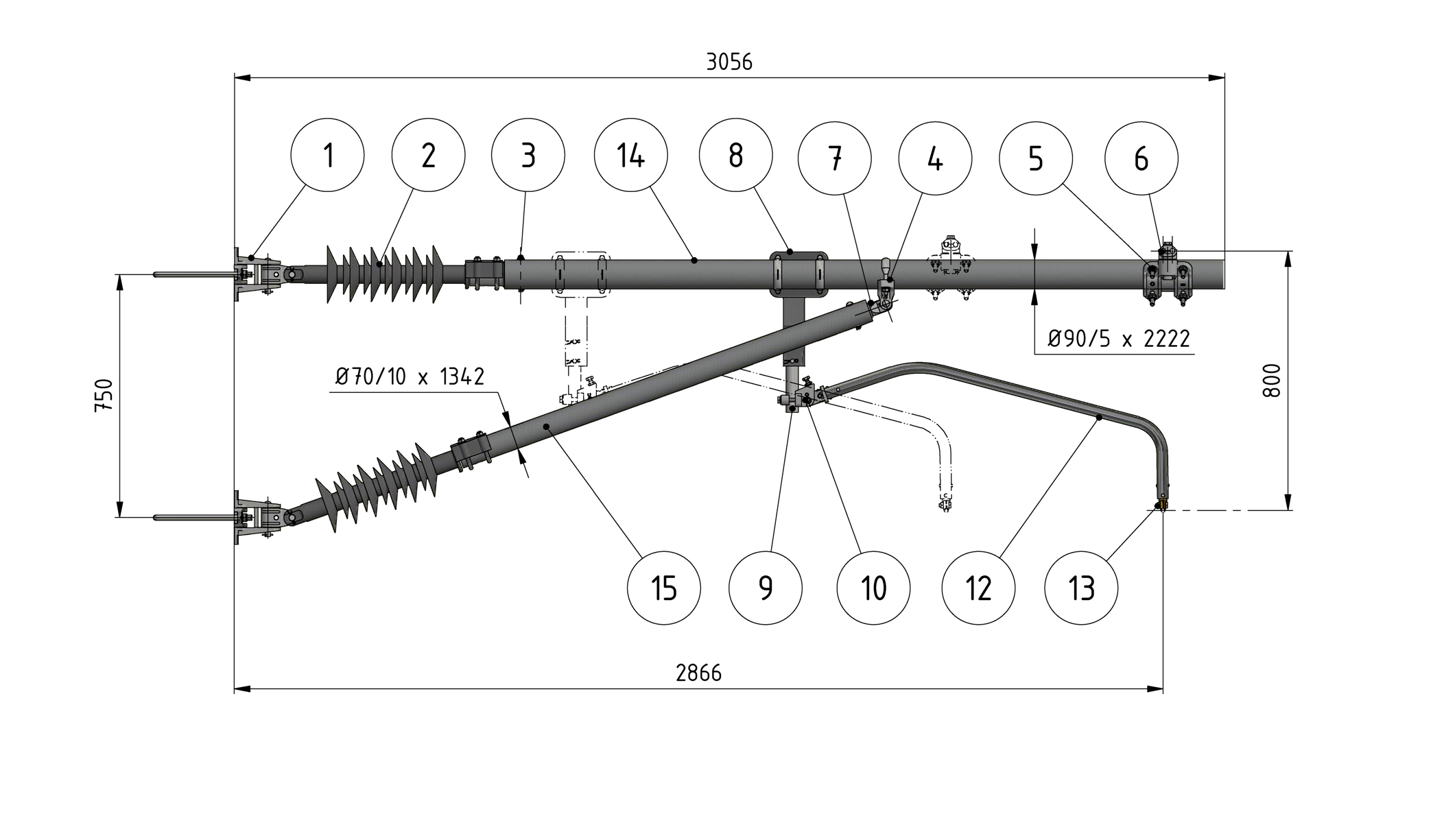

SPC00121-003-(048/049)
Request for quotation (
0
)
added to cart
Display basket
102595
In the basket
Parts list
Accessories
Documents
1
Hinge with tongue vertical, complete, to round pole
D2563-01
Quantity: 2
Unit: pcs
In the basket
2
Insulator 25 kV
SPC00075-007
Quantity: 2
Unit: pcs
In the basket
3
Adapter for pipe to aluminum pipe D = 90/5 mm
E3311-01
Quantity: 1
Unit: pcs
In the basket
4
Pipe attachment complete, with U-bolt, to pipe Ø = 90 mm
D2336-04
Quantity: 1
Unit: pcs
In the basket
5
Messenger cable suspension non insulated, rotatable, reinforced, to pipe D = 90 mm, cable Ø max. 13 mm
D2566-04
Quantity: 1
Unit: pcs
In the basket
6
Protection sleeve AlCu for messenger cable non insulated for cable 70 mm² (7 single wires)
301309
Quantity: 1
Unit: pcs
In the basket
7
Pipe connector with tongue, complete, to pipe Ø = 70/10 mm
D2571-01
Quantity: 1
Unit: pcs
In the basket
8
Drop bracket
C1936-01
Quantity: 1
Unit: pcs
In the basket
9
Pipe Ø = 38 mm for drop bracket clamp movable ± 15°, L = 230 mm
E3314-05
Quantity: 1
Unit: pcs
In the basket
10
Pipe attachment simple with lift limiter, complete, to pipe Ø = 38 mm, for 1 steady arm
D2705-01
Quantity: 1
Unit: pcs
In the basket
12
Overlap steady arm, rigid, G1" curved with eye and plain bearing, L = 1100 mm, with thread M16, SST
D2648-01
Quantity: 1
Unit: pcs
In the basket
13
Contact wire clamp complete, with thread M16
E3183-01
Quantity: 1
Unit: pcs
In the basket
14
Pipe, D=90/5, L=2222
D2658-07
Quantity: 1
Unit: pcs
In the basket
15
Pipe, D=70/10, L=1342
D2660-04
Quantity: 1
Unit: pcs
In the basket
Bracket 180-240
C1853-01
In the basket
Traverse 100-160 mit Bol M8 Drehgelenk kompl Univers
D2668-01
In the basket
U-bolts, Ø = 16 mm to HEB 140
D2476-03
In the basket
Beam clamp for wide flange pole
C1873-01
In the basket
501016_nl.pdf
PDF (266 KB )
